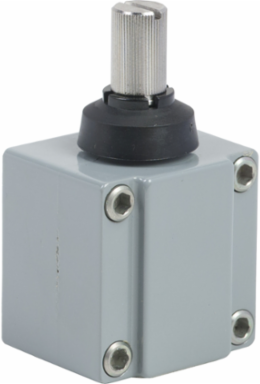

Telemecanique Sensors ZC2JE01H2 Limit switch head, Limit switches XC Standard, rotary operation
- MPN: ZC2JE01H2
- PPN: TES-ZC2JE01H2
- UNSPSC: 39122213
CAD
$83.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch head, Limit switches XC Standard, rotary operation
Documentation & Downloads
Specifications
Key Specifications
| Type Of Approach | lateral approach, 2 directions |
|---|---|
| Movement Of Operating Head | rotary |
| Type Of Operator | without operating lever spring return |
| Product Compatibility | XC2J |
| Head Type | rotary head |
| Series Name | special format |
|---|---|
| Range Of Product | OsiSense XC |
| Product Or Component Type | limit switch head |
| Device Short Name | ZC2J |
Complementary
| Switch Actuation | from left and right || CW and CCW |
|---|---|
| Head Material | metal |
| Positive Opening | without |
|---|---|
| Net Weight | 0.21 kg |
Offer Sustainability
| Eu Rohs Directive | Not applicable, out of EU RoHS legal scope |
|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
|---|
Environment
| Ambient Air Temperature For Operation | -40-70 °C |
|---|---|
| Environmental Characteristic | temperature variation |
| Ambient Air Temperature For Storage | -40-70 °C |
|---|
