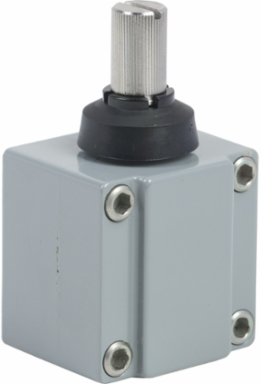

Telemecanique Sensors ZC2JE05H2 Limit switch body, Limit switches XC Standard, HEAD, 2 C/O, snap action, 2 or 3 steps positions
- MPN: ZC2JE05H2
- UPC: 338911032491
- PPN: TES-ZC2JE05H2
- UNSPSC: 39122213
CAD
$86.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch body, Limit switches XC Standard, HEAD, 2 C/O, snap action, 2 or 3 steps positions
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- standard format
- Body Type
- plug-in body
- Contact Operation
- snap action
- Associated Head
- ZC2JE07 || ZC2JE84 || ZC2JE81 || ZC2JE83 || ZC2JE85 || ZC2JE82 || ZC2JE06 || ZC2JE04
- Product Or Component Type
- limit switch body
- Number Of Steps
- 2 3 positions || 2 sequential
- Number Of Poles
- 2
Contacts Type And Composition2 C/O
Range Of ProductTelemecanique Limit switches XC Standard
Contacts Materialsilver plated contacts
Body Materialmetal
Product CompatibilityXC2J
Device Short NameZC2J
Complementary
- Height
- 84-84 mm
- Terminals Description Iso N°1
- (11-12)NC || (13-14)NO
- [Ui] Rated Insulation Voltage
- 500 VIEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block
- Minimum Actuation Speed
- 0.01 m/min
- Electrical Connection
- screw-clamp terminals 1 x 0.75...2 x 1.5 mm²
- Width
- 43 mm
- Local Display
- without
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60664 || 6 kV IEC 60947-1
Electrical Durability5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Short-Circuit Protection10 A cartridge fuse gG
Positive Openingwithout
[Ie] Rated Operational Current3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
[Ithe] Conventional Enclosed Thermal Current10 A
Depth36 mm
Net Weight0.3 kg
Maximum Resistance Across Terminals0.25 mOhm
Environment
- Ambient Air Temperature For Storage
- 10-120 °C
- Ambient Air Temperature For Operation
- 10-120 °C high temperature
- Ip Degree Of Protection
- IP66
Environmental Characteristichigh temperature
Ik Degree Of ProtectionIK07
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Environmental Disclosure
- ENVPEP110614EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
