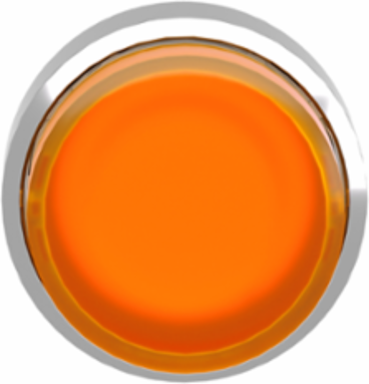

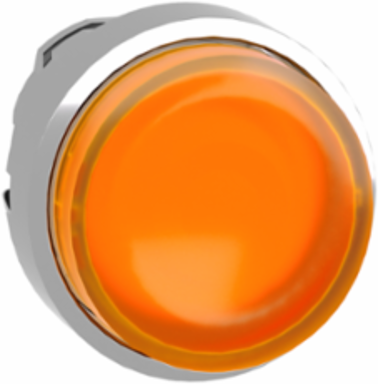

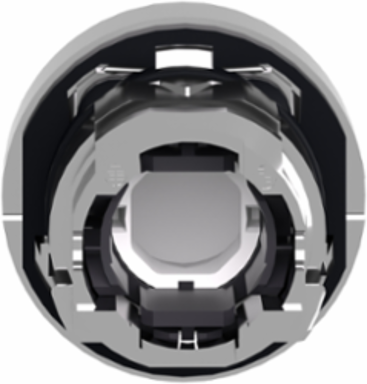

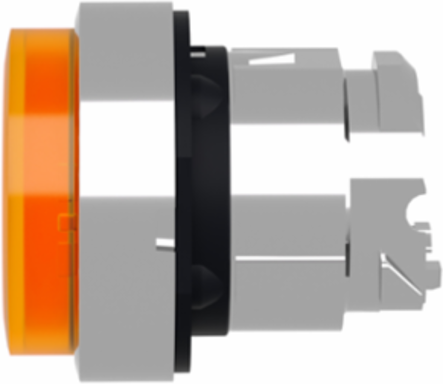

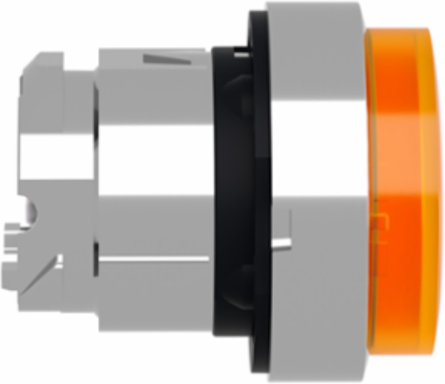

Schneider Electric ZB4BH53 Harmony XB4 Illuminated Push Button Head, 22mm, Orange Projecting, IP66
- MPN: ZB4BH53
- PPN: SCH-ZB4BH53
CAD
$60.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Harmony XB4, illuminated projecting orange button head operates with latched push-push mechanism. This illuminated button head for integral LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and by touch due to projecting element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB4
- Type Of Operator
- push-push
- Shape Of Signaling Unit Head
- round
- Sale Per Indivisible Quantity
- 1
- Operator Profile
- orange projecting, unmarked
- Device Short Name
- ZB4
Mounting Diameter22 mm
Product Or Component Typehead for illuminated push-button
Head Typestandard
Bezel Materialchromium plated metal
Product Compatibilityuniversal LED
Complementary
- Electrical Composition Code
- M5 2 single front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
- Cad Overall Height
- 29 mm
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Cad Overall Width
- 29 mm
Net Weight0.026 kg
Device Presentationbasic element
Mechanical Durability500000 cycles
Cad Overall Depth33 mm
Environment
- Product Certifications
- UL listed || DNV || BV || CSA || LROS (Lloyds register of shipping) || GL
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP69 || IP69K || IP67 IEC 60529
- Overvoltage Category
- class I IEC 60536
- Electrical Shock Protection Class
- class I IEC 60536
Ik Degree Of ProtectionIK05 conforming to IEC 50102
StandardsIEC 60947-5-5 || UL 508 || JIS C8201-5-1 || IEC 60947-1 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-4 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Protective TreatmentTH
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1808008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Important Information
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
