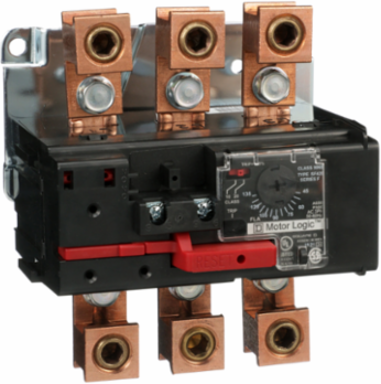

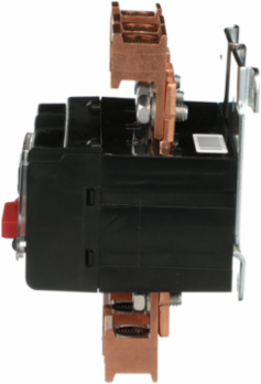

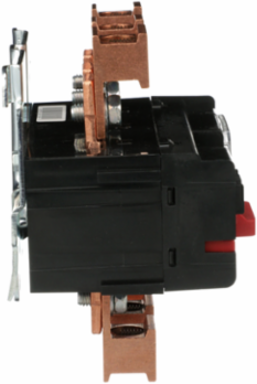

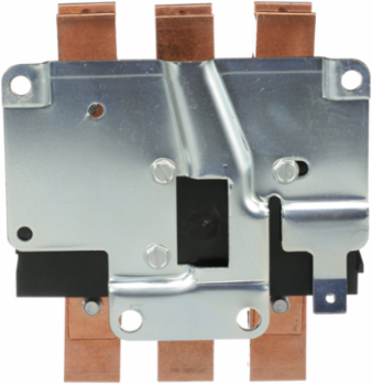

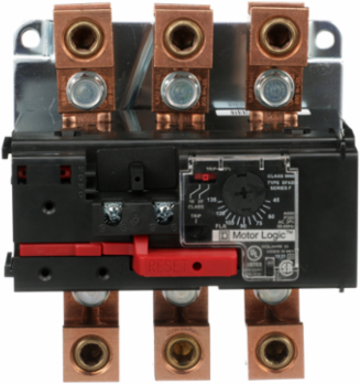

Square D 9065SF420 Motor Logic Solid State Overload Relay NEMA Size 4 3 Pole 45A to 135A 600V AC
Square D 9065SF420 Motor Logic Solid State Overload Relay NEMA Size 4 3 Pole 45A to 135A 600V AC
- MPN: 9065SF420
- UPC: 785901751960
- PPN: SCH-9065SF420
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1192.32/ EA
Description
Motor Logic overload relays can be standalone devices or can be used on Type S full voltage non-reversing and reversing starters and combination starters. Motor Logic relays are ambient insensitive and self-powered. Designed to protect 50/60 Hz, three phase AC motors from overloads, phase unbalance and phase loss conditions. This Motor Logic solid state overload relay is for use with NEMA size 4 three pole starters. This Motor Logic solid state overload relay has a full load current rating of 45A to 135A. Maximum voltage rating of 600 V. The trip free operation will help the motor from overheating. Switch selectable from Class 10 to Class 20 overload trip. The trip free operation will help the motor from overheating. The visible trip indicator and trip test function make trouble shooting much quicker. Electrical remote reset is available. This overload relay is 5.92 inches tall, 5.33 inches wide and 4.53 inches deep. Relay weighs 4.53 lbs. Motor Logic SSOLR are UL listed and CSA certified.
Specifications
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1312002EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1312002EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- Height
- 150.4 mm
- Mounting Support
- panel
- Depth
- 115.1 mm
- [Ue] Rated Operational Voltage
- 600 V AC
Nema Size4
Width135.4 mm
Network Number Of Phases3 phases
Specifications
- Thermal Overload Type
- solid state
Range Of ProductMotor Logic
