Schneider Electric

Schneider Electric XB5RFA02 Harmony XB5R Wireless Push Button 22mm 24-240V AC/DC with 10 Caps

  • MPN: XB5RFA02
  • PPN: SCH-XB5RFA02
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $324.02

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This ready-to-use pack is part of the range diameter 22mm wireless and batteryless pushbuttons XB5R plastic. This pack comprises one wireless and batteryless pushbutton assembled on fixing collar and one receiver. Pushbutton and receiver are factory-paired. It is uses a 24V to 240V AC/DC input. The wireless and batteryless pushbutton reduces installation time and cost by eliminating wiring and associated equipment between the transmitters and the control panel. The pushbutton is always available and requires no maintenance (no battery needed). It is supplied with a set of 10 colored caps. It weighs 230g. This wireless batteryless push button provides a simple and reliable solution for remote control of machines, conveyors and cranes.

    Features

    • The factory-paired programmable receiver features a truly universal $24\text{ to }240\text{ V AC/DC}$ wide-range input voltage, allowing it to integrate directly into almost any control circuit or PLC setup. Because the remote transmitter generates its own kinetic energy when pressed, you eliminate the need to pull control cables through conduits or wire back to the panel, significantly cutting down on physical installation labor and materials.
    • Built as a completely wireless and batteryless design, this Harmony XB5R transmitter relies on kinetic energy harvesting to transmit its signal, meaning it is permanently maintenance-free. You will never face unexpected machine downtime, high-climbing safety risks, or costly service calls just to troubleshoot dead or corroded batteries in a remote operator station.
    • Featuring a standard 22 mm circular cutout dimension and an included plastic fixing collar, the transmitter effortlessly retrofits into existing standard control stations or panels without requiring custom drilling.
    • he ready-to-use package includes a set of 10 interchangeable colored caps, allowing you to instantly modify the button s appearance on-site to match your plant s specific safety color codes or functional standards. This multi-color kit removes the guesswork of ordering separate part numbers for different tasks, streamlining your spare parts inventory.
    • This Green Premium certified product is fully compliant with major global standards, including UL 508, CSA C22.2 No 14, and CE marking, ensuring it passes strict facility safety inspections. The robust plastic operator head stands up to tough industrial conditions, providing a reliable, safe remote-control solution with a low overall carbon footprint.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    France, United States

    Communications & Management Attributes

    Communication Port Protocol
    Zigbee IEEE 802.15.4

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Customizable
    0, no
    Radio Agreement
    SRRC, RSS, ARIB T66, FCC, ICASA, ANATEL
    Transmission Frequency
    2405 MHz transmitter, 2405 MHz receiver
    Carbon Footprint Of The Distribution Phase [A4]
    0.093201, 0.1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.079535, 0.1 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
    25 kg CO2 eq., 24.959
    Local Publishable Date
    2026-01-12
    Future Imap
    359.86
    Stocking Flag
    Y
    Manufacturing Carbon Footprint
    5.3966
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2303007EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Antenna Gain
    0 dBi
    Compatibility Code
    XB5R
    Device Short Name
    XB5R
    Level Or Class
    5M00G7W
    Max Power Consumption In W
    1 mW
    Number Of Channels
    1
    Product Or Component Type
    wireless and batteryless package
    Returnability
    Yes
    Sustainable Packaging
    No
    Type Of Receiver
    programmable receiver 2 relays)
    Pep Code
    ENVPEP2303007EN
    Pep Verification Date
    2025-02-23
    Psr Version
    PSR-0005-ed2-2016 03 29
    Data Source
    referent product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    10
    Energy Model - Installation [A5]
    Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Production mix; Low voltage; UE-27
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]
    5.3642
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) End Of Life [C1-c4]
    0.3859
    Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
    24.959
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]
    1.1321
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
    3.1619
    Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
    313.79
    Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]
    -0.6604
    Impacts Related To Land Use/Soil Quality (-) End Of Life [C1-c4]
    0.8546
    Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
    23.482
    Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
    2.6263
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle
    4.204
    Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle
    738.7331
    Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]
    1.1321
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
    651.03
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
    1.9987
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
    4.204
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
    76.473
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    542.04
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
    1.125
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
    -0.2977
    Water Use (M3 Eq) Manufacturing [A1-a3]
    1.795
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Kit Composition1 transmitter, 1 set of caps, 1 receiver, 1 fixing collars, 1 22 mm, 1 push-button head 22 mm
    Status Led1 LED Green power ON, 2 LEDs Green relay ON, 2 LEDs Green function mode, 1 LED green and yellow reception signal
    Certificate AgencyUL, CCC, GOST, CSA, C-tick
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.4 kg CO2 eq., 0.39794
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]5 kg CO2 eq., 5.3966
    Local Data StatusPublishable
    Return IndicatorY
    Future Msrp465.89
    Stock Policy1
    Use Carbon Footprint24.959
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Antenna Typeomnidirectional
    Control Typewireless and batteryless push-button Ø 22 mm assembled on fixing collar
    Head Materialplastic
    MarkingCE
    Modulation TechniqueO-QPSK
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductHarmony XB5R
    Software Versionv5.9.4
    Total Lifecycle Carbon Footprint31 kg CO2 eq.
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionThis pack comprises one wireless and batteryless push button assembled on fixing collar and one receiver. Push button and receiver are factory-paired. It is uses a 24V to 240V AC/DC input. The wireless and batteryless push button reduces installation time and cost by eliminating wiring and associated equipment between the transmitters and the control panel. Life time of the product is 10 years and product is adhering to IEC 60947-5-1 & UL 508 standards.
    Functional-unit UnitUnit
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27

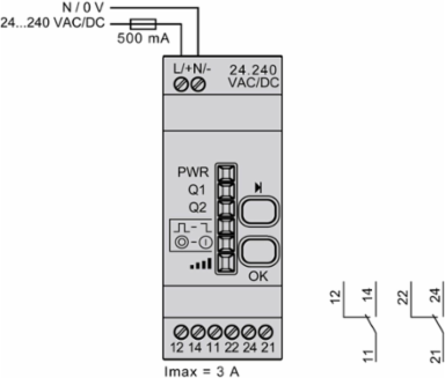

    [Us] Rated Supply Voltage24...240 V AC/DC 50/60 Hz
    Package Weight(Lbs)207.000 g
    Warranty (In Months)18
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]24.933
    Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]5.3966
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]80.677
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]542.04
    Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]283.88
    Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]154.2
    Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]7.9172
    Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]101.98
    Net Use Of Fresh Water (M3) End Of Life [C1-c4]2.0588
    Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]3.7669
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]4.204
    Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]82.676
    Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]0.3906
    Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]3.5044
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]109
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]4.204
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]1.1321
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]3.1619
    Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]1.125
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]109
    Water Use (M3 Eq) End Of Life [C1-c4]78.651

    Environment Attributes Main

    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    30.926275999999998
    Environmental Disclosure
    ENVPEP2303007EN
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Verification Date
    2025-02-23
    Psr Version
    PSR-0005-ed2-2016 03 29
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI2303007EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Without Single Use PlasticNo
    Pep CodeENVPEP2303007EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    wireless and batteryless package
    Range Of ProductHarmony XB5R

    ETIM

    ETIM 8
    EC001028
    ETIM 9EC001028

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
