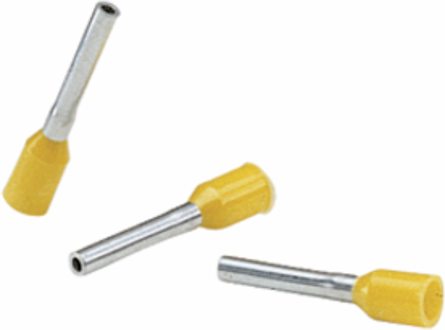

Panduit FSD81-10-D Pan-Term® FSD81-10-D Covered Single Wire Ferrules
Panduit FSD81-10-D Pan-Term® FSD81-10-D Covered Single Wire Ferrules
- MPN: FSD81-10-D
- UPC: 074983762620
- PPN: PAN-FSD81-10-D
- UNSPSC: 39121409
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$0.25/ EA
Description

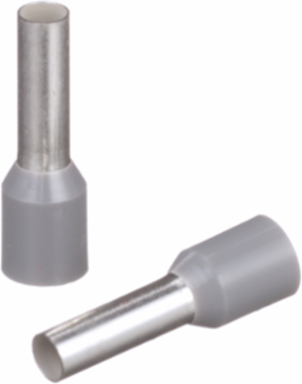

Covered ferrules single wire gray DIN end sleeve, 12 AWG, 10mm pin length.
Specifications
Packaging Details
- UPC
- 07498376262
- Standard Package Volume Ft3
- 0.1912
- Std Package Height In
- 1.2
- Std Package Length In
- 5.15
- Std Package Width In
- 4.65
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 500
- Standard Carton Weight Pounds
- 0.0000
- Min. Order UOM
- Piece
- REACH Status
- N
- ARRA Compliant
- Y
- Lead Content Indicator
- N
- Hazardous Material Flag
- N
- Pallet Quantity
- 1,260,000
- Pallet Weight
- 882.0000
GTIN Package00074983762620
Standard Package Weight Pounds0.3500
Std Package Height MM30.48
Std Package Length MM130.81
Std Package Width MM118.11
UOM EA PKPK
Standard Carton Volume Ft30.0000
Std Ctn Qty0
EAN00074983762620
California Pro65 CancerNo
Mercury Content IndicatorN
Restricted Use of Hazardous SubstancesN
Min Order Qty500.0000
Pallet Volume0.000000
RoHS CompliantCompliant
Specifications
- Country of Origin
- Germany
- Product Segment
- IEI
- Product Type
- Covered Single Wire Ferrule
- Minimum Operating Temperature (°C)
- -54
- Maximum Wire Insulation Diameter (mm)
- 4.8
- Overall Length (In.)
- 0.69
- Sub Brand
- Pan-Term®
- Minimum Operating Temperature (°F)
- -60
- Flammability Rating
- UL94-HB
- Inside Diameter (mm)
- 2.9
- Wire Strip Length (mm)
- 13.5
- Pin Length (In.)
- 0.39
- Packaging Type
- Bag
- Inside Diameter (In.)
- 0.11
- Maximum Wire Insulation Diameter (In.)
- 0.19
- Maximum Metric Conductor Size (mm²)
- 4
Any Reason Not to SellN
Wire Strip Length (In.)17/32
Minimum Metric Conductor Size (mm²)4
For Use WithCT-1002, CT-1003, CT-1090, CT-1123, CT-1160, CT-1170, CP-991, CP-992, CTFP-40, CTFP-100, CT-2300/ST (CD-090), CT-2500/L (CT-2523CH)
Pin Length (mm)10
Finish/CoatingTin-Plated
Ferrule TypeSingle Wire Standard
Maximum Operating Temperature (°F)221
CSA Temperature Rating (°C)105
Overall Length (mm)17.5
Base MaterialCopper
Maximum Operating Temperature (°C)105
Cover MaterialPolypropylene
Color CodeGray
UL Temperature Rating (°C)105
Copper Conductor Size12 AWG
