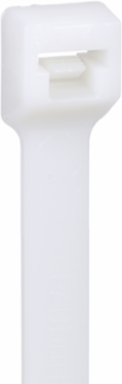

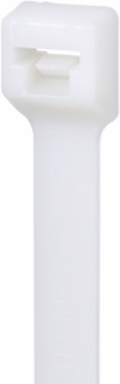

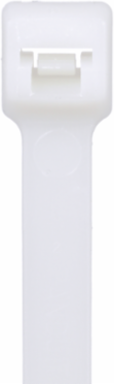

Panduit PLT4S-C Pan-Ty® PLT4S-C Cable Tie, PA6.6, 14.5"L, 50lb, PK100
Panduit PLT4S-C Pan-Ty® PLT4S-C Cable Tie, PA6.6, 14.5"L, 50lb, PK100
- MPN: PLT4S-C
- UPC: 074983540839
- PPN: PAN-PLT4S-C
- UNSPSC: 39121703
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$0.60/ EA
Description
Panduit PLT4S-C Locking Cable Ties are designed to satisfy the needs of general applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Standard cross section, 14.5” (368mm) length. For indoor use, made of Nylon 6.6, are natural in color and come in packages of 100.
Specifications
Specifications
- Country of Origin
- Malaysia, United States
- Product Segment
- IEI
- Military Cross Reference Number
- MS3367-2-9
- Material
- Nylon 6.6
- Body Width (mm)
- 4.8
- Body Thickness (In.)
- 0.052
- For Use With
- GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PPTS, PTH, STS2, STH2
- Overall Length (In.)
- 14.5
- Environment
- Indoor
- Minimum Installation Temperature (°C)
- -20
- Minimum Installation Temperature (°F)
- -4
- Minimum Operating Temperature (°F)
- -76
- Minimum Bundle Diameter (In.)
- 0.06
- Minimum Bundle Diameter (mm)
- 1.5
Any Reason Not to SellN
Maximum Operating Temperature (°C)85
ColorNatural
Maximum Bundle Diameter (mm)102
Minimum Operating Temperature (°C)-60
Overall Length (mm)368
Maximum Bundle Diameter (In.)4
Body Thickness (mm)1.3
Minimum Loop Tensile Strength (N)222
Maximum Operating Temperature (°F)185
Body Width (In.)0.19
Product TypePremium Cable Tie
Minimum Loop Tensile Strength (lb)50
Material DescriptionNylon 6.6
Packaging Details
- UPC
- 07498354083
- Standard Package Volume Ft3
- 0.0496
- Std Package Height In
- 1.55
- Std Package Length In
- 16.05
- Std Package Width In
- 5.65
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 100
- Standard Carton Volume Ft3
- 0.4961
- Std Carton Height In
- 6
- Std Carton Length In
- 16.7
- Std Carton Width In
- 8.95
- Std Ctn Qty
- 1000
- EAN
- 00074983540839
- California Pro65 Cancer
- No
- Mercury Content Indicator
- N
- Restricted Use of Hazardous Substances
- N
- Min Order Qty
- 1,000.0000
- Pallet Volume
- 47.621181
- RoHS Compliant
- Compliant
GTIN Package00074983540839
Standard Package Weight Pounds0.6500
Std Package Height MM39.37
Std Package Length MM407.67
Std Package Width MM143.51
UOM EA PKPK
GTIN Carton50074983540834
Standard Carton Weight Pounds6.5000
Std Carton Height MM152.4
Std Carton Length MM424.18
Std Carton Width MM227.33
Min. Order UOMPiece
REACH StatusN
ARRA CompliantY
Lead Content IndicatorN
Hazardous Material FlagN
Pallet Quantity96,000
Pallet Weight624.0000
