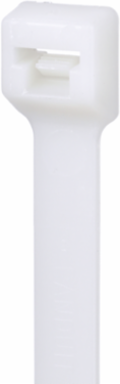

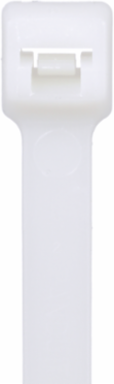

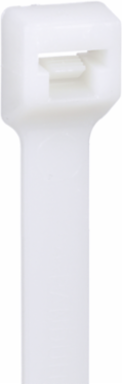

Panduit PLT4S-M Cable Tie, Natural, PA6.6, 14.5"L (368 mm), 50lb, PK1000
- MPN: PLT4S-M
- UPC: 074983540815
- PPN: PAN-PLT4S-M
- UNSPSC: 39121703
CAD
$0.16
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The PLT4S-M cable tie provides dependable, higher-strength bundling for indoor installations and general-purpose routing. Standard cross section, 14.5 in (368mm) long with 50 lb (222 N) minimum loop tensile strength and a 0.06–4 in (1.5–101.6mm) bundle diameter range. It is natural Nylon 6.6 for consistent routing and organization. Operating range -76 to 185°F (-60 to 85°C). Use with GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PPTS, PTH, STS2, and STH2 tools. Std. pkg. qty. 1000.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States, Costa Rica, Malaysia |
|---|---|
| Product Segment | IEI |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Minimum Operating Temperature (°C) | -60 |
| Military Cross Reference Number | MS3367-2-9 |
| Minimum Loop Tensile Strength (N) | 222 |
| Body Thickness (In.) | 0.052 |
| Maximum Operating Temperature (°F) | 185 |
| Body Width (In.) | 0.19 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Installation Temperature (°C) | -20 |
| Maximum Bundle Diameter (mm) | 102 |
| Air Handling Space | AH-2 Plenum |
| Any Reason Not to Sell | N |
|---|---|
| Color | Natural |
| Product Type | Premium Cable Tie |
| For Use With | GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PPTS, PTH, STS2, STH2 |
| Body Thickness (mm) | 1.3 |
| Maximum Operating Temperature (°C) | 85 |
| Environment | Indoor |
| Body Width (mm) | 4.8 |
| Overall Length (In.) | 14.5 |
| Minimum Installation Temperature (°F) | -4 |
| Overall Length (mm) | 368 |
| Maximum Bundle Diameter (In.) | 4 |
| Material | Nylon 6.6 |
| Material Description | Nylon 6.6 |
| Flammability Rating | UL 94 V-2 |
Packaging Details
| UPC | 07498354081 |
|---|---|
| Standard Package Volume Ft3 | 0.4421 |
| Std Package Height In | 4.55 |
| Std Package Length In | 18.15 |
| Std Package Width In | 13.25 |
| Std. Pkg. UOM | Piece |
| Std. Pkg. Qty. | 1000 |
| Standard Carton Volume Ft3 | 2.2103 |
| Std Carton Height In | 15.65 |
| Std Carton Length In | 22.9 |
| Std Carton Width In | 11 |
| Std Ctn Qty | 5000 |
| EAN | 00074983540815 |
| California Pro65 Cancer | No |
| Mercury Content Indicator | N |
| Restricted Use of Hazardous Substances | N |
| Min Order Qty | 1,000.0000 |
| Pallet Volume | 53.046174 |
| RoHS Compliant | Compliant |
| GTIN Package | 00074983540815 |
|---|---|
| Standard Package Weight Pounds | 6.3383 |
| Std Package Height MM | 115.57 |
| Std Package Length MM | 461.01 |
| Std Package Width MM | 336.55 |
| UOM EA PK | PK |
| GTIN Carton | 50074983540810 |
| Standard Carton Weight Pounds | 31.6915 |
| Std Carton Height MM | 397.51 |
| Std Carton Length MM | 581.66 |
| Std Carton Width MM | 279.4 |
| Min. Order UOM | Piece |
| REACH Status | N |
| ARRA Compliant | Y |
| Lead Content Indicator | N |
| Hazardous Material Flag | N |
| Pallet Quantity | 120,000 |
| Pallet Weight | 760.5960 |
