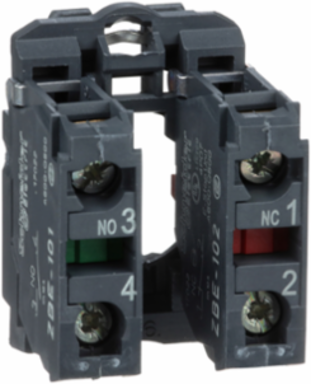

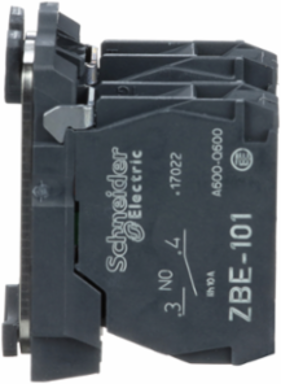

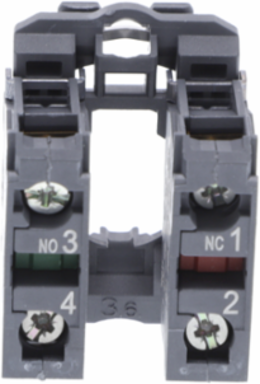

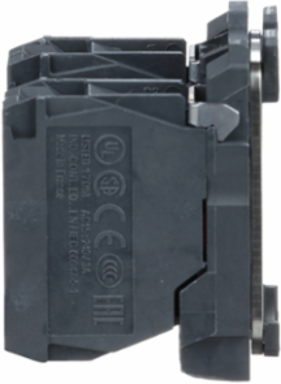

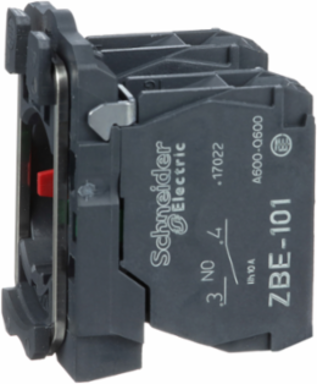

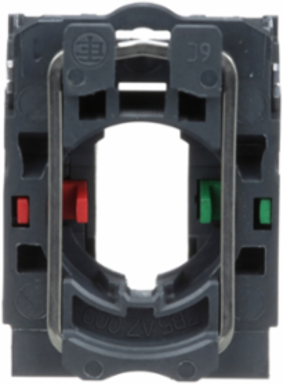

Schneider Electric ZB5AZ105 Harmony XB5 Single Contact Block, 1NO+1NC, IP20, Plastic

MPN: ZB5AZ105
PPN: SCH-ZB5AZ105

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$40.32

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Features

This convenient, pre-assembled kit includes the heavy-duty ZB5AZ009 plastic mounting collar paired with a high-performance ZBE101 (NO) and ZBE102 (NC) contact block configuration. This all-in-one architecture allows commercial control panel builders to instantly establish a complete electrical backbone behind any standard 22mm push button, selector switch, or pilot light, cutting installation steps in half.
Outfitted with one Normally Open (NO) and one Normally Closed (NC) electrical contact, this versatile block supports simultaneous break-before-make operations. This dual-circuit layout allows industrial automation technicians to wire interlocking safety circuits, dual-state feedback loops, or simultaneous machine-start/fault-signal paths from a single physical button actuator.
Formed from highly durable, double-insulated dark grey plastic, the mounting base is optimized to resist corrosion, automotive oils, and harsh industrial solvents. It serves as a rugged, non-conductive barrier that perfectly insulates the internal electronics, guaranteeing stable alignment for your control devices even under repeated mechanical slamming and high-abuse shifts.
Featuring a toolless, spring-loaded snap-fit mounting mechanism, this base allows users to securely click the assembly onto the control operator in seconds. This modular design means field maintenance teams can effortlessly stack or swap additional ZBE contact blocks as logic requirements shift, completely removing the hassle of dismantling the front-of-panel button hardware during retrofits.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Spain, France, United States

Physical Attributes

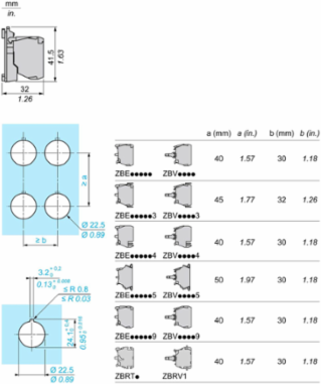

Cad Overall Depth	32 mm
Cad Overall Width	30 mm

Cad Overall Height	42 mm

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Contact Operation	slow-break, slow-break
Device Composition	fixing collar, body
Electrical Reliability	λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
Contacts Composition	1 NO + 1 NC
[Ie] Rated Operational Current	3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Carbon Footprint Of The Distribution Phase [A4]	0.007413259083391998, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.005597534426882791, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	0 kg CO2 eq., 0.03592690140845071
Local Publishable Date	2026-01-12
Stocking Flag	N
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2303008EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Percentage Of Recycled Metal Content	12 %
Compatibility Code	ZB5
Contacts Material	silver alloy (Ag/Ni)
Contacts Usage	standard contacts
Fixing Collar Material	plastic
Mechanical Durability	10000000 cycles
Positive Opening	with IEC 60947-5-1 appendix K
Product Or Component Type	complete body/contact assembly
Range Of Product	Harmony XB5
Sale Per Indivisible Quantity	1
Software Version	v5.9.4
Tightening Torque	0.8-1.2 N.m IEC 60947-1
Vibration Resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Connections Terminals 8 Connections Terminals	screw clamp terminals
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	XB5 Modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations.A push button switch's primary purpose is to turn something on or off in industrial applications. This pushbutton power consumption is 0.002W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; APAC
[Ith] Conventional Free Air Thermal Current	10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947-1
Short-circuit Protection	10 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)	29.000 g
Warranty (In Months)	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Customizable	0, no
Electrical Durability	1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Shape Of Screw Head	cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
Certificate Agency	BV, UL, CSA, DNV, LROS (Lloyds register of shipping)
Terminals Description Iso N°1	(13-14)NO, (11-12)NC, (13-14)NO, (11-12)NC
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0 kg CO2 eq., 0.038373942860167966
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.2 kg CO2 eq., 0.15735194721341966
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Percentage Of Recycled Plastic Content	24 %
Contact Block Type	single
Contacts Type And Composition	1 NO + 1 NC
Device Short Name	ZB5
Head Type	standard
Operating Travel	1.5 mm NC changing electrical state)2.6 mm NO changing electrical state)4.3 mm total travel)
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TH
Returnability	Yes
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	0.2 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Code	ENVPEP2303008EN
Pep Verification Date	2024-03-24
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; APAC
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; APAC
[Ui] Rated Insulation Voltage	600 V 3)IEC 60947-1
Connections - Terminals	screw clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8538908180

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C
Take Back	No
Recycled Metal Content At Cr Level	12 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.2446635849923131
Environmental Disclosure	ENVPEP2303008EN
Ip Degree Of Protection	IP20 IEC 60529
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2024-03-24
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI2303008EN
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2303008EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
