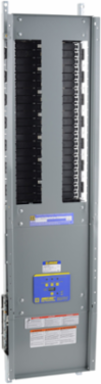

Square D NF442L2TVS412 NF Panelboard Interior, 250A, 42 Spaces, 600Y/347V AC, Aluminum Bus
Square D NF442L2TVS412 NF Panelboard Interior, 250A, 42 Spaces, 600Y/347V AC, Aluminum Bus
- MPN: NF442L2TVS412
- UPC: 785901498872
- PPN: SCH-NF442L2TVS412
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
NF Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices. These interiors provide protection for commercial and industrial applications. NF Panelboards feature a wide selection of circuit breakers, accessories, and ready to install kits. NF Panelboards are field convertible to top or bottom feed. NF Panelboards are convertible from main lug to main breaker. NF Panelboards can provide 200% rated neutrals for nonlinear loads. Some factory installed options are split bus, lighting contactors, compression lugs, surge protection devices, and phenolic nameplates. The main lugs are rated at 250A 480Y/277 VAC 3 phase. Interior has an interrupt current rating of up to 65 kA. This interior is for a 4 wire system with 42 spaces and has an aluminum bus bar. Interior is for EDB, EDG, and EDJ branch circuit breakers. Line lug connections will accept 6 AWG to 350 kcmil aluminum wire. The interior is 52 inches tall and 10.44 inches wide. This interior is UL listed and CSA certified.
Specifications
Offer Sustainability
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant
- Reach Free Of Svhc
- Yes
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Specifications
- Circuit Breaker Type
- EDB/EDG/EDJ
- Material
- aluminium
Loadcentre TypeMain lugs
Complementary
- Height
- 52 in
- Enclosure Nominal Depth
- 5.75 in NEMA 1 || 6.5 in NEMA 3R/5/12
- [Ipk] Rated Peak Withstand Current
- 60 kA between phase and neutral || 60 kA between phase and ground || 100 kA between neutral and ground
- [Iu] Rated Interrupted Current
- 65 kA
- Width
- 10.44 in
- Network Number Of Phases
- 3 phases
- Product Destination
- surge protection device, 120 kA 400 V, 150 V
Connections - Terminalslug line AWG 6...350 kcmil aluminum || lug neutral AWG 6...350 kcmil aluminum
Tightening Torque4.52-5.65 N.m 13.30-67.43 mm² AWG 6...AWG 2/0) || 11.3-11.3 N.m 13.30-67.43 mm² AWG 6...AWG 2/0) || 31.07-31.07 N.m 13.30-177.3 mm² AWG 6...350 kcmil) || 31.07-31.07 N.m 13.30-126.7 mm² AWG 6...250 kcmil) || 31.07-31.07 N.m 107.2-152 mm² AWG 4...300 kcmil)
[In] Rated Current250 A
Wiring Configuration4-wire
Number Of Spaces42
Enclosure Nominal Width20 in
[Ue] Rated Operational Voltage600Y/347 V AC
Environment
- Standards
- UL 67 || CSA C22.2
