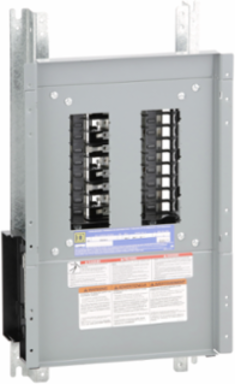

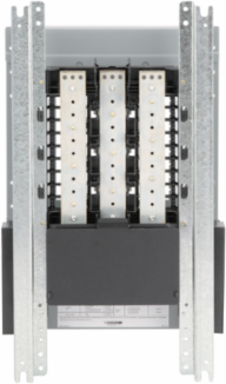

Schneider Electric NQ418L1C Panelboard Interior 100A Copper Bus 18 Pole 3 Phase 240V AC 48V DC
- MPN: NQ418L1C
- UPC: 785901502173
- PPN: SCH-NQ418L1C
CAD
$741.44
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
NQ Panelboard interiors may be used in a wide variety of applications including: commercial buildings; industrial buildings; data centers; stadiums; and offices. NQ Panelboards are versatile panelboards that feature a wide selection of bolt-on and plug-on branch circuit breakers, integral main circuit breakers, branch mounted SPDs, and a wide variety of ready to install accessory kits. The interiors are field convertible to support top or bottom feed. This main lugs interior is rated 100A for 240VAC and 48VDC, has a plated copper bus, and 18 pole spaces. NQ Panelboards are convertible from main lugs to main circuit breaker. NQ Panelboards offer 200% rated neutrals for nonlinear loads. Factory installed options include phenolic nameplates, power monitoring of mains and branch circuits, split bus interiors, and neutral assemblies which support up to 36 100A branch circuit breakers. NQ Panelboards are available with IP2X per IEC 60529 barriers for UL service entrance applications. Interior has an interrupt current rating of up to 65kA (depending upon the circuit breakers installed). This NQ panelboard interior is UL listed for applications in the USA and Canada. Interior accepts QOB, QOBVH and QHB bolt-on and QO, QOVH and QH plug-on branch circuit breakers. Standard mechanical main lug connections will accept copper or aluminum wire. NQ Panelboard interiors are available with plated aluminum or copper bus. 100A branch circuit breakers may be installed on both sides of NQ Panelboard interiors.
Features
- Engineered with a premium, solid copper busbar, this lighting and distribution panelboard interior delivers maximum electrical efficiency and significantly lower heat dissipation than aluminum alternatives. For facility managers and commercial electricians, this ensures minimized voltage drops, maximum joint integrity, and cool continuous operations in demanding 240V AC or 48V DC applications.
- Providing 18 available pole spaces in a standard 3-phase, 4-wire layout, this 100 Amp interior allows for precise, balanced phase loading across commercial distribution systems. The chassis accepts both QO plug-on and QOB bolt-on branch circuit breakers (including standard, high-interrupting QOB-VH, and QHB series), giving contractors the flexibility to lock down breaker attachments based on site-specific vibration or building specs.
- Purpose-built to drop directly into standard 20-inch wide Square D NEMA enclosures with a height of 26 inches and a nominal depth of 5.75 inches, this interior offers a perfect factory fit. The streamlined dimensions maximize gutter space for clean, compliant wire-bending loops, helping field crews wrap up complex commercial routing tasks quickly and neatly.
- The main connection block is equipped with high-grade lugs that safely secure aluminum and neutral conductors ranging from AWG 6 up to AWG 2/0. Tightening the terminal screws to the factory-certified torque profile of 40.01 to 50 lbf-in (4.52 to 5.65 N-m) ensures a compression bond that resists natural thermal expansion cycles, preventing arcing and localized degradation at the main feed drop.
- This NQ series interior supports short-circuit current ratings (SCCR) up to a maximum of 65 kA, varying dynamically based on the interrupting thresholds of the specific branch breakers installed. Carrying complete UL and CSA safety certifications, this rugged distribution interior ensures hassle-free compliance with national and provincial electrical codes during final building inspections.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Costa Rica |
|---|
Physical Attributes
| Enclosure Nominal Height | 26 in |
|---|
| Enclosure Nominal Width | 20 in |
|---|
Complementary Attributes
| Line Rated Current | 100 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM |
|---|---|
| Circuit Breaker Type | QOB, QOB-VH, QHB |
| Certificate Agency | UL, CSA |
| [Iu] Rated Interrupted Current | 10 kA, 22 kA, 65 kA |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 15 kg CO2 eq., 15.3878600635 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 45 kg CO2 eq., 44.8764888264 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Commercial |
| Energy Efficiency Optimized | False |
| Material | copper |
| Phase | 3 phase 4 wires |
| Product Or Component Type | interiors |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 62 kg CO2 eq. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1270 mm x 508.00 mm x 146.05 mm and NAME 1& 10- followed standard: UL 67 UL 50E and CSA22.2 |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; MX |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA |
| Recyclability Potential In % | 91 |
| Width Nominal | 10.44 in |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538100000 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer |
|---|---|
| Tightening Torque | 4.52-5.65 N.m 13.30-67.43 mm² (6 AWG...2/0 AWG), 11.3-11.3 N.m 13.30-67.43 mm² (6 AWG...2/0 AWG)31.07-31.07 N.m 13.30-177.3 mm² (6 AWG...350 kcmil), 31.07-31.07 N.m 13.30-126.7 mm² (6 AWG...250 kcmil)31.07-31.07 N.m 107.2-152 mm² (4 AWG...300 kcmil) |
| Connections - Terminals | lug line 6 AWG...2/0 AWG aluminium, lug neutral 6 AWG...2/0 AWG aluminium |
| Carbon Footprint Of The Distribution Phase [A4] | 1.9287829124, 2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0857254764, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 0 kg CO2 eq., 0.0254773433 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | N |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | COMMERCIAL |
| Product Kit Identifier | N |
| Load Center Type | main lugs |
| Number Of Spaces | 18 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Sustainable Packaging | No |
| Pep Code | ENVPEP2303005EN |
| Pep Verification Date | 2023-07-15 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA |
| Height Nominal | 27 in |
| [Ue] Rated Operational Voltage | 240 V AC48 V DC |
| Package Weight(Lbs) | 6.341 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 62.304334622 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-07-15 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2303005EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2303005EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Phase | 3 phase 4 wires |
|---|
| Product Or Component Type | interiors |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
