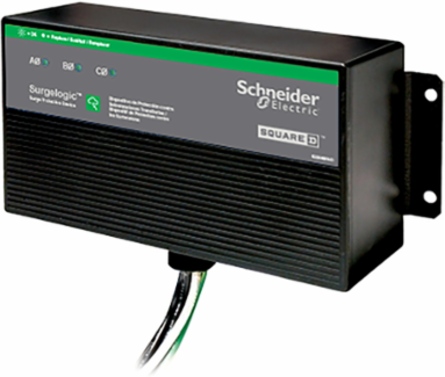

Square D HWA21 Surge protective device, Surgelogic, HWA, 100kA, 208Y/120V, 3 phase, 4 wire, SPD type 2, UL 1283, NEMA 4X
- MPN: HWA21
- UPC: 047569000850
- PPN: SCH-HWA21
CAD
$3501.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Surgelogic™ Type HWA systems are externally mounted surge protection devices. Designed for external installation, the device enables convenient access for retrofitting and maintenance without requiring modifications to internal panel configurations. External mounting limits fault impact on internal equipment, enhancing reliability. With a surge current rating of 100,000 Amps and Indoor/Outdoor. This is UL type 2 under UL 1283. Rated for 208Y/120VAC three phase systems. This product is UL and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Depth74.2 mm
Physical Attributes
- Cable Length
- .61 m, .61 m
Important Information Attributes
- Local Signalling
- status LED green per phase normal operation, status LED red per phase fault
- Provided Equipment
- alarm enable/disable switch, dry contacts
- Local Data Status
- Publishable
- Return Indicator
- Y
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2531
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Enclosure Material
- polycarbonate
- Frequency Measurement Range
- 47-63 Hz
- Phase
- 3 phase
- Product Or Component Type
- surge protection device
- Returnability
- Yes
- Wiring Configuration
- 4-wire
- Width Nominal
- 218.9 mm
- [Uc] Maximum Continuous Operating Voltage
- 150 V
- Connections - Terminals
- wire AWG 10
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Noise Level-54 dB, -54 dB
Certificate AgencyUL 1449:ed. 5, CSA C22.2 No 269.2, UL 96A, UL 1283
Local Publishable Date2025-11-13
Stocking FlagN
Weee Product Category4
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Device Short NameHWA
Energy Efficiency OptimizedFalse
Nominal Discharge Current20 kA
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductSurgelogic
Sustainable PackagingNo
Height Nominal121.9 mm
[Iimp] Impulse Current10 kA
[Ue] Rated Operational Voltage208Y/120 V AC
Short-circuit Protection200 kA
Package Weight(Lbs)6.499 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -40-60 °C, -40-60 °C
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...12000 ft
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 0-95 %
Ambient Air Temperature For Operation-25-60 °C, -25-60 °C
Take BackNo
Mercury FreeYes
Nema Degree Of ProtectionNEMA 4X
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Provided Equipment
- alarm enable/disable switch, dry contacts
- Product Or Component Type
- surge protection device
Phase3 phase
Range Of ProductSurgelogic
Surge Protection And Filtering Attributes
- Surge Current
- 100 kA
Input Attributes
- Input Voltage
- 900 V L-N, 1200 V L - G, 700 V N - G, 1500 V L-L
