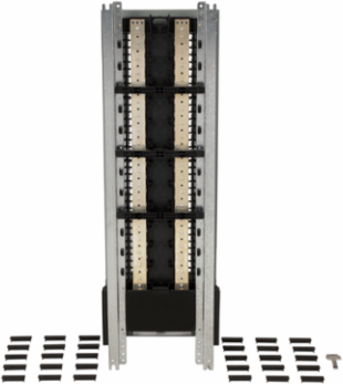

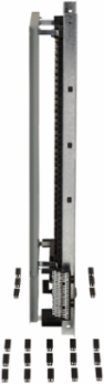

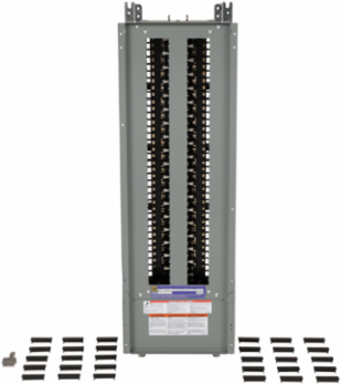

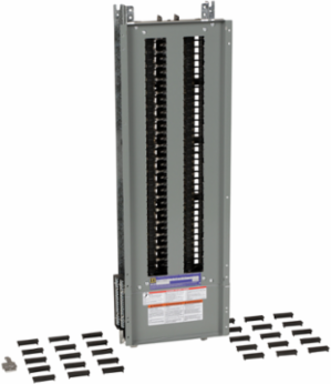

Square D NQ72L2 NQ Panelboard Interior, 225A, 1 Phase, 72 Spaces, Aluminum Bus, 240VAC
- MPN: NQ72L2
- UPC: 785901498094
- PPN: SCH-NQ72L2
CAD
$1123.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This interior main lugs panelboard is one of the Schneider Electric™ NQ lighting and appliance panelboards. It is a one phase, three wire panelboard with tin plated aluminum lugs suitable for aluminum or copper. The phase and the neutral lugs accept 1-#6 AWG to 350kcmil conductor. It has a voltage rating of 240VAC or 48VDC and is rated for 225A line current and 10kA, 22kA, and 65kA interrupted current. It has 72 spaces for bolt on (QOB or QHB) circuit breakers to provide protection for branch circuits. It is compliant with CSA and UL standards.
Documentation & Downloads
Specifications
Key Specifications
- Circuit Breaker Type
- QOB || QOB-VH || QHB
- Loadcentre Type
- Main lugs
Product Or Component Typeinteriors
Materialaluminium
Complementary
- Height
- 39 in
- Tightening Torque
- 4.52-5.65 N.m 13.30-67.43 mm² AWG 6...AWG 2/0) || 11.3-11.3 N.m 13.30-67.43 mm² AWG 6...AWG 2/0) || 31.07-31.07 N.m 13.30-177.3 mm² AWG 6...350 kcmil) || 31.07-31.07 N.m 13.30-126.7 mm² AWG 6...250 kcmil) || 31.07-31.07 N.m 107.2-152 mm² AWG 4...300 kcmil)
- [Iu] Rated Interrupted Current
- 10 kA || 22 kA || 65 kA
- Wiring Configuration
- 3-wire
- Enclosure Nominal Height
- 44 in
- Net Weight
- 10.5 kg
- [Ue] Rated Operational Voltage
- 240 V AC || 48 V DC
Enclosure Nominal Depth5.75 in NEMA 1 || 6.5 in NEMA 3R/5/12
[In] Rated Current225 A
Width10.44 in
Number Of Spaces72
Network Number Of Phases1 phase
Enclosure Nominal Width20 in
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1404019EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Reach Free Of SvhcYes
Environment
- Standards
- UL || CSA
