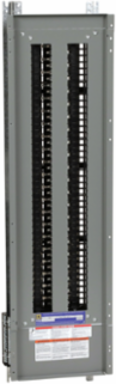

NQ Panelboard Interior, 225A Main Lugs, 84 Pole Spaces, Aluminum Bus, 240V AC, 48V DC
Square D

Square D NQ84L2 NQ Panelboard Interior, 225A Main Lugs, 84 Pole Spaces, Aluminum Bus, 240V AC, 48V DC

  • MPN: NQ84L2
  • UPC: 785901498148
  • PPN: SCH-NQ84L2

CAD

$1560.59

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

NQ Panelboard Interior, 225A Main Lugs, 84 Pole Spaces, Aluminum Bus, 240V AC, 48V DC

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Mexico

Physical Attributes

Enclosure Nominal Height
50 in
Enclosure Nominal Width20 in

Complementary Attributes

Line Rated Current
225 A

Important Information Attributes

Persona Type Ids
EU, LC, OM
Circuit Breaker Type
QOB, QOB-VH, QHB
Certificate Agency
UL, CSA
[Iu] Rated Interrupted Current
10 kA, 22 kA, 65 kA
Carbon Footprint Of The End-of-life Phase [C1 To C4]
27 kg CO2 eq., 27.4223254413
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
76 kg CO2 eq., 75.6301604808
Local Data Status
Publishable
Return Indicator
Y
Stock Policy
2
Weee Product Category
5
Eoli Availability Display
No need of specific recycling operations
Reach Full Compliance Status Id
NOT_CONTAINING_SVHC
Rohs Eur In Scope
Yes
Rohs Eur Conformity Date
2532
China Rohs In Scope
No
With Recycled Cardboard
Yes
Product Contributes To Saved And Avoided Emissions
No
Tier
2
Function Option
Standard
Market Segmentation
Commercial
Energy Efficiency Optimized
False
Material
aluminium
Phase
1 phase 3 wires
Returnability
Yes
Sustainable Packaging
No
Pep Code
ENVPEP2303004EN
Pep Verification Date
2023-07-15
Psr Version
PSR-0005-ed2-2016 03 29
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime, In Y
20
Energy Model - Manufacturing [A1-a3]
Energy model used: Electricity Mix; Production mix; Low voltage; MX
Energy Model - Use [B6]
Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA
Recyclability Potential, In %
93
Width Nominal
10.44 in
Package Weight(Lbs)
11.793 kg
Warranty (In Months)
18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Tightening Torque4.52-5.65 N.m 13.30-67.43 mm² (AWG 6...AWG 2/0), 11.3-11.3 N.m 13.30-67.43 mm² (AWG 6...AWG 2/0), 31.07-31.07 N.m 13.30-177.3 mm² (AWG 6...350 kcmil), 31.07-31.07 N.m 13.30-126.7 mm² (AWG 6...250 kcmil), 31.07-31.07 N.m 107.2-152 mm² (AWG 4...300 kcmil)
[Ue] Rated Operational Voltage240 V AC, 48 V DC
Carbon Footprint Of The Distribution Phase [A4]3.389972743, 3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.4341599172, 0.4 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]45 kg CO2 eq., 44.7040371444
Local Publishable Date2025-12-16
Stocking FlagN
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdCOMMERCIAL
Product Kit IdentifierN
Load Center Typemain lugs
Number Of Spaces84
Product AvailabilityStock - Normally stocked in distribution facility
Software Versionv5.9.4
Total Lifecycle Carbon Footprint152 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1270 mm x 508 mm x 146.05 mm,and NEMA 1& 10- followed standard: UL 67 UL 50E and CSA22.2
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh100.21
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA
Height Nominal45 in
Nbr. Of Units In Pkg.1
Take-backNo

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc
Yes
Toxic Heavy Metal Free
Yes
Carbon Footprint
151.5806557267
Eu Rohs Directive
Compliant
Packaging Without Single Use Plastic
No
Reach Regulation
Free of Substances of Very High Concern above the threshold
Pep Verification Date
2023-07-15
Psr Version
PSR-0005-ed2-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2303004EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2303004EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review

General Attributes

Phase
1 phase 3 wires

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
