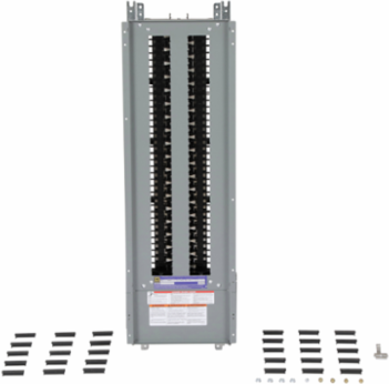

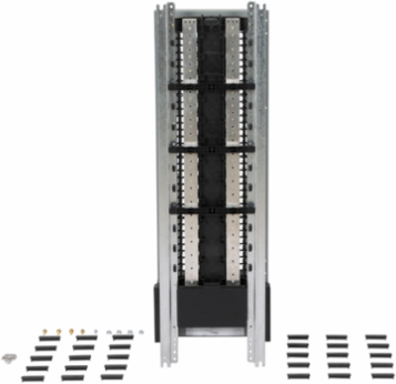

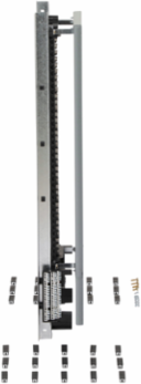

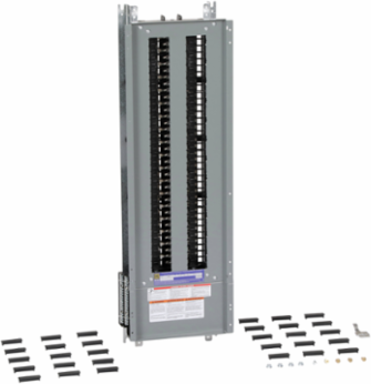

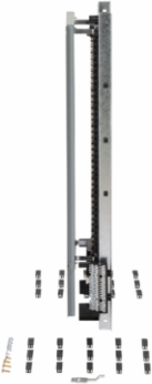

Square D NQ72L2C NQ Panelboard Interior, 225A, 72 Circuits, 3-Wire, Copper Bus, 240VAC
- MPN: NQ72L2C
- UPC: 785901856320
- PPN: SCH-NQ72L2C
CAD
$1244.76
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
NQ Panelboard Interior, 225A, 72 Circuits, 3-Wire, Copper Bus, 240VAC
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Physical Attributes
- Enclosure Nominal Height
- 44 in
Enclosure Nominal Width20 in
Complementary Attributes
- Line Rated Current
- 225 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM
- Circuit Breaker Type
- QOB, QOB-VH, QHB
- Certificate Agency
- UL, CSA
- [Iu] Rated Interrupted Current
- 10 kA, 22 kA, 65 kA
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 26 kg CO2 eq., 25.9415724879
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 76 kg CO2 eq., 75.6548787867
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2532
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Commercial
- Energy Efficiency Optimized
- False
- Material
- copper
- Phase
- 1 phase 3 wires
- Product Or Component Type
- interiors
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 150 kg CO2 eq.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1270 mm x 508.00 mm x 146.05 mm and NAME 1& 10- followed standard: UL 67 UL 50E and CSA22.2
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 100.21
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA
- Height Nominal
- 39 in
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Tightening Torque4.52-5.65 N.m 13.30-67.43 mm² (AWG 6...AWG 2/0), 11.3-11.3 N.m 13.30-67.43 mm² (AWG 6...AWG 2/0), 31.07-31.07 N.m 13.30-177.3 mm² (AWG 6...350 kcmil), 31.07-31.07 N.m 13.30-126.7 mm² (AWG 6...250 kcmil), 31.07-31.07 N.m 107.2-152 mm² (AWG 4...300 kcmil)
[Ue] Rated Operational Voltage240 V AC, 48 V DC
Carbon Footprint Of The Distribution Phase [A4]3.2516322301, 3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.1445200081, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]45 kg CO2 eq., 44.7039024869
Local Publishable Date2025-11-18
Stocking FlagY
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdCOMMERCIAL
Product Kit IdentifierN
Load Center Typemain lugs
Number Of Spaces72
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Sustainable PackagingNo
Pep CodeENVPEP2303005EN
Pep Verification Date2023-07-15
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; MX
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA
Recyclability Potential, In %91
Width Nominal10.44 in
Package Weight(Lbs)11.28 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 149.6965059997
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-07-15
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2303005EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2303005EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Phase
- 1 phase 3 wires
Product Or Component Typeinteriors
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
