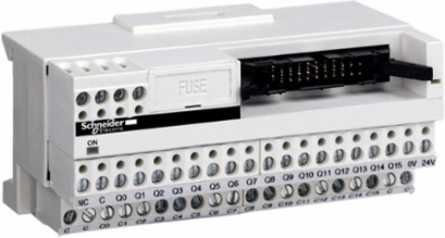

Schneider Electric ABE7H16C31 Modicon ABE7 Passive Discrete I/O Sub-Base, 16 Channels, 1.8 A, IP2X
- MPN: ABE7H16C31
- PPN: SCH-ABE7H16C31
CAD
$220.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This miniature passive connection sub-base provides 16 modularity input/output channels. It has 3 terminals per channel. It is a sub base with a maximum supply current of 1.8A and a rated supply voltage of 19V to 30V. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. It weighs 0.26kg. It is suitable for all types of industrial applications. This product is certified by GL, BV, CSA, UL, DNV and LROS. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, Spain, France, Indonesia, Latvia
Complementary Attributes
- Maximum Current Per Output Common
- 1.8 A
Maximum Supply Current1.8 A
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Certificate Agency
- DNV, UL, GL, CSA, EAC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.03553393681595906, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.06301753997364423, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 1 749 kg CO2 eq., 1749.1248641439533
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- No
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Fixing Mode
- by clips (35 mm symmetrical DIN rail)by screws (solid plate with fixing kit)
- Number Of Channels
- 16
- Number Of Terminal Per Channel
- 3
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Modicon ABE7
- Resistance To Fast Transients
- 2 kV level 3 IEC 61000-4-4
- Resistance To Radiated Fields
- 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Status Led
- 1 LED per channel (Green) channel status1 LED (Green) power ON
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 1 756 kg CO2 eq.
- Voltage Drop On Power Supply Fuse
- 0.3 V
- Pep Code
- ENVPEP1212029_V4
- Pep Verification Date
- 2026-06-18
- Psr Version
- No PSR
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Latvia, LV
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential In %
- 6
- [Us] Rated Supply Voltage
- 19...30 V IEC 61131-2
- Sub-base Type
- miniature sub-base
- Package Weight(Lbs)
- 238.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Connections - Terminalsscrew type terminals, 1 x 0.09...1 x 1.5 mm², 0.09-1.5 mm² 28 AWG...16 AWG) flexible with cable endscrew type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² 26 AWG...12 AWG) solidscrew type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² 26 AWG...14 AWG) flexible without cable endscrew type terminals, 2 x 0.09...2 x 0.75 mm², 0.09-0.75 mm² 28 AWG...20 AWG) flexible with cable end, screw type terminals, 2 x 0.2...2 x 2.5 mm², 0.2-2.5 mm² 24 AWG...14 AWG) solid
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5 kg CO2 eq., 0.5123415252925524
Carbon Footprint Of The Manufacturing Phase [A1 To A3]7 kg CO2 eq., 6.67498843789884
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1212029EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1845
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Current Per Channel0.5 A
Installation CategoryII IEC 60664-1
Number Of Horizontal Rows3
Polarity Distribution0 V or 24 V
Product Or Component Typepassive discrete I/O sub-base
Resistance To Electrostatic Discharge4 kV contact) level 3 IEC 61000-4-28 kV air) level 3 IEC 61000-4-2
Resistance To Incandescent Wire750 °C 30 s IEC 60695-2-11
ReturnabilityNo
Software Versionv6.2.5-6
Supply Circuit TypeDC
Tightening Torque0.6 N.m flat Ø 3.5 mm
Vibration Resistance2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPCR-4-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo connect I/O to channels of operative parts for 10 years, 100% of the time in industrial atmosphere.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh3784.32
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
[Ui] Rated Insulation Voltage2000 V
Short-circuit Protection2 A internal fuse, 5 x 20 mm, fast blow PLC end)
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908180
Environment Attributes Main
- Ambient Air Temperature For Operation
- -5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2-5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 1756.4107455839344
- Environmental Disclosure
- ENVPEP1212029_V4
- Ip Degree Of Protection
- IP2X conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1212029_V4
- Pcr Version
- PCR-4-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1212029EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2026-06-18
Psr VersionNo PSR
General Attributes
- Product Or Component Type
- passive discrete I/O sub-base
Range Of ProductModicon ABE7
ETIM
- ETIM 8
- EC002585
ETIM 9EC002585
Output Attributes
- Maximum Current Per Output Common
- 1.8 A
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
