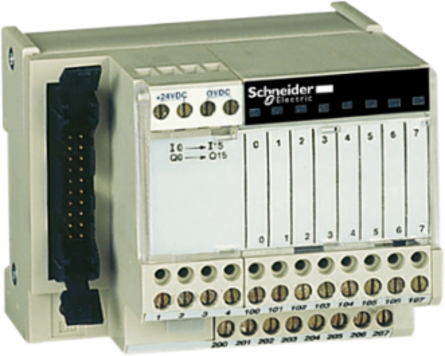

Schneider Electric ABE7H16R50 Passive Discrete I/O Sub-Base, 16 Channels, 0.196 kg, IP2X
- MPN: ABE7H16R50
- PPN: SCH-ABE7H16R50
CAD
$128.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Passive Discrete I/O Sub-Base from Schneider Electric is designed to enhance automation and control applications, featuring 16 channels for versatile functionality within industrial settings. This model offers reliable connectivity for a variety of control systems, ensuring seamless integration with PLCs and HMIs. Rated at IP2X, it provides essential protection against accidental contact with electrical components, making it a safe choice for various environments. Ideal for users seeking to expand their I/O capabilities, this sub-base is a robust solution for managing discrete signals efficiently.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Latvia
Complementary Attributes
- Maximum Current Per Output Common
- 1.8 A
Maximum Supply Current1.8 A
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Certificate Agency
- DNV, UL, CSA, GL, EAC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.03239858944984503, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.05745716879949915, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 1 749 kg CO2 eq., 1749.1248641439533
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- No
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Current Per Channel
- 0.5 A
- Installation Category
- II IEC 60664-1
- Number Of Horizontal Rows
- 2
- Pin Number
- 20 pins
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Modicon ABE7
- Resistance To Fast Transients
- 2 kV level 3 IEC 61000-4-4
- Resistance To Radiated Fields
- 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Status Led
- 1 LED (Green) power ON
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 1 756 kg CO2 eq.
- Voltage Drop On Power Supply Fuse
- 0.3 V
- Pep Code
- ENVPEP1212029_V4
- Pep Verification Date
- 2026-06-18
- Psr Version
- No PSR
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Latvia, LV
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential In %
- 6
- [Ui] Rated Insulation Voltage
- 2000 V
- Short-circuit Protection
- 2 A internal fuse, 5 x 20 mm, fast blow PLC end)
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Connections - Terminalsscrew type terminals, 1 x 0.09...1 x 1.5 mm² 28 AWG...16 AWG) flexible with cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm² 26 AWG...12 AWG) solidscrew type terminals, 1 x 0.14...1 x 2.5 mm² 26 AWG...14 AWG) flexible without cable endscrew type terminals, 2 x 0.09...2 x 0.75 mm² 28 AWG...20 AWG) flexible with cable endscrew type terminals, 2 x 0.2...2 x 2.5 mm² 24 AWG...14 AWG) solid
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5 kg CO2 eq., 0.46713492011968016
Carbon Footprint Of The Manufacturing Phase [A1 To A3]6 kg CO2 eq., 6.086018869848942
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1212029EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1845
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Connector TypeHE-10
Fixing Modeby clips (35 mm symmetrical DIN rail)by screws (solid plate with fixing kit)
Number Of Channels16
Number Of Terminal Per Channel1
Polarity Distributionno
Product Or Component Typepassive discrete I/O sub-base
Resistance To Electrostatic Discharge4 kV contact) level 3 IEC 61000-4-28 kV air) level 3 IEC 61000-4-2
Resistance To Incandescent Wire750 °C IEC 60695-2-11
ReturnabilityNo
Software Versionv6.2.5-6
Supply Circuit TypeDC
Tightening Torque0.6 N.m flat Ø 3.5 mm
Vibration Resistance2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPCR-4-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo connect I/O to channels of operative parts for 10 years, 100% of the time in industrial atmosphere.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh3784.32
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Width Nominal84 mm
[Us] Rated Supply Voltage19...30 V IEC 61131-2
Sub-base TypeI/O sub-base
Package Weight(Lbs)217.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2-5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 1755.7678736921712
- Environmental Disclosure
- ENVPEP1212029_V4
- Ip Degree Of Protection
- IP2X conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1212029_V4
- Pcr Version
- PCR-4-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1212029EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2026-06-18
Psr VersionNo PSR
General Attributes
- Product Or Component Type
- passive discrete I/O sub-base
Range Of ProductModicon ABE7
ETIM
- ETIM 8
- EC002585
ETIM 9EC002585
Output Attributes
- Maximum Current Per Output Common
- 1.8 A
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
