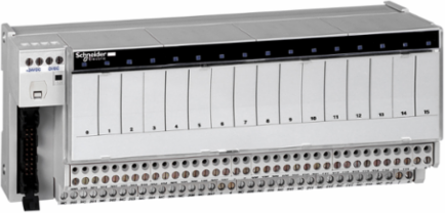

Schneider Electric ABE7P16T318 Modicon ABE7 Relay Sub-Base, 16 Channels, IP2X, 1kg
- MPN: ABE7P16T318
- PPN: SCH-ABE7P16T318
CAD
$561.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This plug in relay sub-base offers 1 switch disconnector per channel. The output sub-base offers a rated supply voltage of 19V to 30V. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. It weighs 1kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS, UL, GL and EAC. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalize wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Latvia
Depth74 mm
Complementary Attributes
- Maximum Current Per Output Common
- 16 A
Maximum Supply Current1 A
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Certificate Agency
- CSA, UL, GL, DNV, EAC
- Short-circuit Protection
- 1 A internal fuse, 5 x 20 mm, fast blow PLC end), 2 A fuse per channel, 5 x 20 mm, fast blow output circuit)
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 2 kg CO2 eq., 1.948189413402353
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 25 kg CO2 eq., 25.381783765959877
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1212029EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1845
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Channel Additional Information
- 1 switch disconnector per channel
- Installation Category
- II IEC 60664-1
- Polarity Distribution
- polarity distribution contact common per 2 groups of 4 channels
- Product Or Component Type
- sub-base for plug-in relay
- Resistance To Electrostatic Discharge
- 4 kV contact) level 3 IEC 61000-4-28 kV air) level 3 IEC 61000-4-2
- Resistance To Incandescent Wire
- 750 °C 30 s IEC 60695-2-11
- Returnability
- No
- Software Version
- v6.2.5-6
- Supply Circuit Type
- DC
- Tightening Torque
- 0.6 N.m flat Ø 3.5 mm
- Vibration Resistance
- 2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PCR-4-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To connect I/O to channels of operative parts for 10 years, 100% of the time in industrial atmosphere.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 2102.4
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 89 mm
- [Ui] Rated Insulation Voltage
- 300 V coil circuit/contact circuits IEC 60947-12000 V terminals/mounting rails
- [Us] Rated Supply Voltage
- 19...30 V IEC 61131-2
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536904000
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Connections - Terminalsscrew type terminals, 1 x 0.09...1 x 1.5 mm² 28 AWG...16 AWG) flexible with cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm² 26 AWG...12 AWG) solidscrew type terminals, 1 x 0.14...1 x 2.5 mm² 26 AWG...14 AWG) flexible without cable endscrew type terminals, 2 x 0.09...2 x 0.75 mm² 28 AWG...20 AWG) flexible with cable endscrew type terminals, 2 x 0.2...2 x 2.5 mm² 24 AWG...14 AWG) solid
Carbon Footprint Of The Distribution Phase [A4]0.135118541253962, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.2396255196476808, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]972 kg CO2 eq., 971.7360356355297
Local Publishable Date2026-01-12
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Fixing Modeby clips (35 mm symmetrical DIN rail)by screws (solid plate with fixing kit)
Number Of Channels16
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductModicon ABE7
Resistance To Fast Transients2 kV level 3 IEC 61000-4-4
Resistance To Radiated Fields10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
Shock Resistance15 gn 11 ms IEC 60068-2-27
Status Led1 LED per channel (Green) channel status1 LED (Green) power ON
Sustainable PackagingNo
Total Lifecycle Carbon Footprint999 kg CO2 eq.
Voltage Drop On Power Supply Fuse0.3 V
Pep CodeENVPEP1212029_V4
Pep Verification Date2026-06-18
Psr VersionNo PSR
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Latvia, LV
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential In %6
Width Nominal272 mm
[Uimp] Rated Impulse Withstand Voltage2.5 kV
Sub-base Typeoutput sub-base
Package Weight(Lbs)905.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2-5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2
- Product Compatibility
- ABS7SC3E, ABS7A3M, ABE7ACC21, ABR7S33, ABS7SC3..
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1212029EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2026-06-18
- Psr Version
- No PSR
Ambient Air Temperature For Storage-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2
Take BackNo
China Rohs RegulationX
Carbon Footprint999.4407528757936
Environmental DisclosureENVPEP1212029_V4
Ip Degree Of ProtectionIP2X conforming to IEC 60529
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1212029_V4
Pcr VersionPCR-4-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- sub-base for plug-in relay
Range Of ProductModicon ABE7
ETIM
- ETIM 8
- EC002584
ETIM 9EC002584
Output Attributes
- Maximum Current Per Output Common
- 16 A
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
