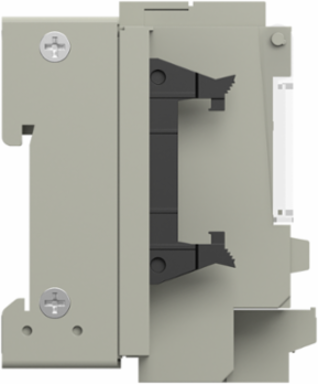

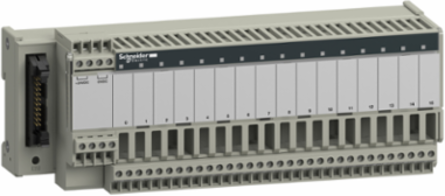

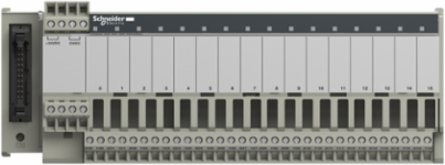

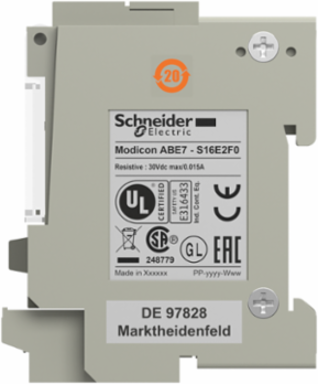

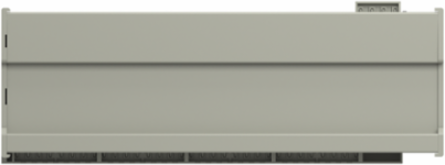

Schneider Electric ABE7S16E2F0 Modicon ABE7 Solid State Output Relay Sub-Base, 16 Channels, IP2x, 110/130V AC

MPN: ABE7S16E2F0
PPN: SCH-ABE7S16E2F0

$668.31

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is part of the Modicon ABE7 range, an offer of connection sub bases for Telefast pre-wired system. This soldered solid state output relay sub base offers 16 channels with 2 terminals per channel. The solid state input relay sub base offers a rated supply voltage of 110V/130V AC 50Hz/60Hz for sensor end and 24V DC for PLC end. It is furnished with screw type terminals for electrical connection. It is an IP2x rated product. Its dimensions are 206mm (width) x 58mm (depth) x 77mm (height). It weighs 0.397kg. It is suitable for all types of industrial applications. This product is certified by BV, UL, GL, DNV, CSA, LROS and EAC. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). The Modicon ABE7 means greater simplicity to rationalize wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, China, France, Latvia

Depth	58 mm

Complementary Attributes

Maximum Switching Current	15 mA PLC end)

Minimum Switching Current	1 mA for PLC end

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Current State 1 Guaranteed	>= 5 mA sensor end), >= 5 mA sensor end)>= 5 mA sensor end), >= 5 mA sensor end)
Switching Frequency	<= 25 Hz 50 %, <= 25 Hz 50 %<= 25 Hz 50 %, <= 25 Hz 50 %
Certificate Agency	UL, GL, DNV, CSA, EAC
Connections - Terminals	screw type terminals, 1 x 0.09...1 x 1.5 mm², 0.09-1.5 mm² 28 AWG...16 AWG) flexible with cable endscrew type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² 26 AWG...12 AWG) solidscrew type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² 26 AWG...14 AWG) flexible without cable endscrew type terminals, 2 x 0.09...2 x 0.75 mm², 0.09-0.75 mm² 28 AWG...20 AWG) flexible with cable end, screw type terminals, 2 x 0.2...2 x 2.5 mm², 0.2-2.5 mm² 24 AWG...14 AWG) solid
Carbon Footprint Of The End-of-life Phase [C1 To C4]	1 kg CO2 eq., 1.0375992234916398
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	14 kg CO2 eq., 13.518253895240509
Local Data Status	Publishable
Return Indicator	N
Stock Policy	1
Serviceability	No
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1212029EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1845
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Market Segmentation	Industrial
Current Per Channel	0.0083 A
Fixing Mode	by clips (35 mm symmetrical DIN rail)by screws (solid plate with fixing kit)
Number Of Channels	16
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protection Type	internal fuse 1 A 5 x 20 mm fast blow PLC endadjustable by external fuse fast blow sensor end
Resistance To Electrostatic Discharge	4 kV contact) level 3 IEC 61000-4-28 kV air) level 3 IEC 61000-4-2
Resistance To Incandescent Wire	750 °C IEC 60695-2-11
Returnability	No
Software Version	v6.2.5-6
Sustainable Packaging	No
Tightening Torque	0.6 N.m flat Ø 3.5 mm
Vibration Resistance	2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
Pep Code	ENVPEP1212029_V4
Pep Verification Date	2026-06-18
Psr Version	No PSR
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; Latvia, LV
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential In %	6
Width Nominal	206 mm
[Uimp] Rated Impulse Withstand Voltage	2.5 kV IEC 60947-1
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8538908180

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Response Time	<= 20 ms from state 0 to 1, <= 20 ms from state 0 to 1, <= 20 ms from state 1 to 0, <= 20 ms from state 1 to 0<= 20 ms from state 0 to 1, <= 20 ms from state 0 to 1, <= 20 ms from state 1 to 0
Voltage State 1 Guaranteed	>= 79 V sensor end, >= 79 V sensor end>= 79 V sensor end, >= 79 V sensor end
[Us] Rated Supply Voltage	110/130 V AC 50/60 Hz sensor end), 24 V DC PLC end)
Carbon Footprint Of The Distribution Phase [A4]	0.07196368716509358, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.12762375742561563, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	49 kg CO2 eq., 48.58680178177649
Local Publishable Date	2026-01-12
Stocking Flag	Y
Device Type	PLC System - PLC Component
Traceability	No
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Dielectric Strength	2000 V 50/60 Hz IEC 60947-1
Installation Category	II IEC 60664-1
Number Of Terminal Per Channel	2
Product Or Component Type	solid state input relay sub-base
Range Of Product	Modicon ABE7
Resistance To Fast Transients	2 kV level 3 IEC 61000-4-4
Resistance To Radiated Fields	10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
Shock Resistance	15 gn 11 ms IEC 60068-2-27
Supply Voltage Limits	19-30 V DC PLC end)IEC 61131-2
Terminal Block Type	removable
Total Lifecycle Carbon Footprint	63 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2024-01
Pcr Version	PCR-4-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To connect I/O to channels of operative parts for 10 years, 100% of the time in industrial atmosphere.
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	105.12
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Height Nominal	77 mm
[Ui] Rated Insulation Voltage	2000 V
Isolation Plc/Operative Part	yes
Package Weight(Lbs)	482.000 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Operation	-5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2-5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2
Take Back	No
China Rohs Regulation	X
Carbon Footprint	63.34224234509934
Environmental Disclosure	ENVPEP1212029_V4
Ip Degree Of Protection	IP2X conforming to IEC 60529
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP1212029_V4
Pcr Version	PCR-4-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI1212029EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2026-06-18
Psr Version	No PSR
