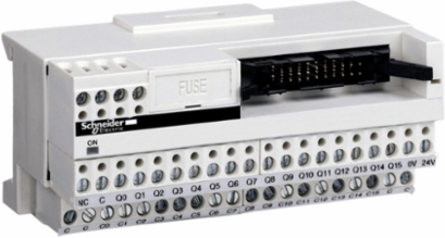

Schneider Electric ABE7H16C10 Passive Discrete I/O Sub-Base, 16 Channels, Miniature, 0.16 kg
- MPN: ABE7H16C10
- PPN: SCH-ABE7H16C10
CAD
$98.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric ABE7H16C10 Passive Discrete I/O Sub-Base is an essential component in the realm of automation and control, designed to facilitate seamless communication between various input and output devices. With 16 channels available in a compact and lightweight configuration, this miniature sub-base simplifies the integration of discrete signals, making it an excellent choice for PLC and HMI applications. Its robust design ensures reliable performance, empowering engineers and system designers to efficiently manage data acquisition tasks while optimizing space within control panels.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, China, France, Latvia, United States |
|---|
Complementary Attributes
| Maximum Current Per Output Common | 1.8 A |
|---|
| Maximum Supply Current | 1.8 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Certificate Agency | GL, DNV, CSA, UL, EAC |
| Carbon Footprint Of The Distribution Phase [A4] | 0.021350222540681286, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.03786347990013078, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 1 749 kg CO2 eq., 1749.1248641439533 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | PLC System - PLC Component |
| Traceability | No |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Fixing Mode | by clips (35 mm symmetrical DIN rail)by screws (solid plate with fixing kit) |
| Number Of Channels | 16 |
| Number Of Terminal Per Channel | 1 |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Modicon ABE7 |
| Resistance To Fast Transients | 2 kV level 3 IEC 61000-4-4 |
| Resistance To Radiated Fields | 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3 |
| Shock Resistance | 15 gn 11 ms IEC 60068-2-27 |
| Status Led | 1 LED (Green) power ON |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 1 754 kg CO2 eq. |
| Voltage Drop On Power Supply Fuse | 0.3 V |
| Pep Code | ENVPEP1212029_V4 |
| Pep Verification Date | 2026-06-18 |
| Psr Version | No PSR |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; Latvia, LV |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; Europe, EU-27 |
| Recyclability Potential In % | 6 |
| [Us] Rated Supply Voltage | 19...30 V IEC 61131-2 |
| Sub-base Type | miniature sub-base |
| Package Weight(Lbs) | 143.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Connections - Terminals | screw type terminals, 1 x 0.09...1 x 1.5 mm², 0.09-1.5 mm² 28 AWG...16 AWG) flexible with cable endscrew type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² 26 AWG...12 AWG) solidscrew type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² 26 AWG...14 AWG) flexible without cable endscrew type terminals, 2 x 0.09...2 x 0.75 mm², 0.09-0.75 mm² 28 AWG...20 AWG) flexible with cable end, screw type terminals, 2 x 0.2...2 x 2.5 mm², 0.2-2.5 mm² 24 AWG...14 AWG) solid |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.3 kg CO2 eq., 0.30783545427241593 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 4 kg CO2 eq., 4.010602296720732 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 1 |
| Serviceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1212029EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1845 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Current Per Channel | 0.5 A |
| Installation Category | II IEC 60664-1 |
| Number Of Horizontal Rows | 1 |
| Polarity Distribution | no |
| Product Or Component Type | passive discrete I/O sub-base |
| Resistance To Electrostatic Discharge | 4 kV contact) level 3 IEC 61000-4-28 kV air) level 3 IEC 61000-4-2 |
| Resistance To Incandescent Wire | 750 °C 30 s IEC 60695-2-11 |
| Returnability | No |
| Software Version | v6.2.5-6 |
| Supply Circuit Type | DC |
| Tightening Torque | 0.6 N.m flat Ø 3.5 mm |
| Vibration Resistance | 2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6 |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2024-01 |
| Pcr Version | PCR-4-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To connect I/O to channels of operative parts for 10 years, 100% of the time in industrial atmosphere. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 3784.32 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| [Ui] Rated Insulation Voltage | 2000 V |
| Short-circuit Protection | 2 A internal fuse, 5 x 20 mm, fast blow PLC end) |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536904000 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2-5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2 |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 1753.5025155973874 |
| Environmental Disclosure | ENVPEP1212029_V4 |
| Ip Degree Of Protection | IP2X conforming to IEC 60529 |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP1212029_V4 |
| Pcr Version | PCR-4-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2 |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1212029EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2026-06-18 |
| Psr Version | No PSR |
General Attributes
| Product Or Component Type | passive discrete I/O sub-base |
|---|
| Range Of Product | Modicon ABE7 |
|---|
ETIM
| ETIM 8 | EC002585 |
|---|
| ETIM 9 | EC002585 |
|---|
Output Attributes
| Maximum Current Per Output Common | 1.8 A |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
