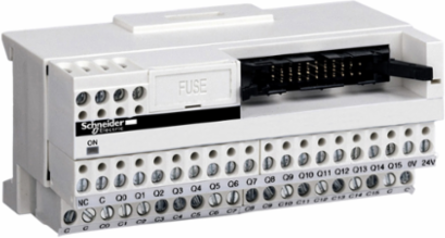

Schneider Electric ABE7H16C11 Modicon Passive Connection Sub-Base with 16 Channels, 1.8A, IP2X
- MPN: ABE7H16C11
- PPN: SCH-ABE7H16C11
CAD
$148.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This miniature passive connection sub-base provides 16 modularity input/output channels. It has 1 terminal per channel. It is a sub base with a maximum supply current of 1.8A and a rated supply voltage of 19V to 30V. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. It weighs 0.16kg. It is suitable for all types of industrial applications. This product is certified by GL, BV, CSA, UL, DNV and LROS. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Modicon ABE7
- Number Of Terminal Per Channel
- 1
- Number Of Channels
- 16
- [Us] Rated Supply Voltage
- 19...30 V IEC 61131-2
Product Or Component Typepassive discrete I/O sub-base
Connections - Terminalsscrew type terminals, 1 x 0.09...1 x 1.5 mm², 0.09-1.5 mm² AWG 28...AWG 16) flexible with cable end || screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² AWG 26...AWG 12) solid || screw type terminals, 1 x 0.14...1 x 2.5 mm², 0.14-2.5 mm² AWG 26...AWG 14) flexible without cable end || screw type terminals, 2 x 0.09...2 x 0.75 mm², 0.09-0.75 mm² AWG 28...AWG 20) flexible with cable end || screw type terminals, 2 x 0.2...2 x 2.5 mm², 0.2-2.5 mm² AWG 24...AWG 14) solid
Sub-Base Typeminiature sub-base
Complementary
- Short-Circuit Protection
- 2 A internal fuse, 5 x 20 mm, fast blow PLC end)
- Current Per Channel
- 0.5 A
- Installation Category
- II IEC 60664-1
- [Ui] Rated Insulation Voltage
- 2000 V
- Fixing Mode
- by clips (35 mm symmetrical DIN rail) || by screws (solid plate with fixing kit)
- Tightening Torque
- 0.6 N.m flat Ø 3.5 mm
- Supply Circuit Type
- DC
Number Of Horizontal Rows1
Status Led1 LED per channel (green) channel status || 1 LED (green) power ON
Maximum Current Per Output Common1.8 A
Net Weight0.16 kg
Polarity Distributionno
Maximum Supply Current1.8 A
Voltage Drop On Power Supply Fuse0.3 V
Environment
- Product Certifications
- UL || CSA || DNV || GL || EAC
- Ambient Air Temperature For Operation
- -5-60 °C IEC 61131-2
- Vibration Resistance
- 2 gn 10-150 Hz)IEC 60068-2-6
- Pollution Degree
- 2 IEC 60664-1
- Ambient Air Temperature For Storage
- -40-80 °C IEC 61131-2
- Resistance To Fast Transients
- 2 kV level 3 IEC 61000-4-4
Resistance To Radiated Fields10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
Shock Resistance15 gn 11 ms IEC 60068-2-27
Ip Degree Of ProtectionIP2X IEC 60529
Resistance To Incandescent Wire750 °C 30 s IEC 60695-2-11
Resistance To Electrostatic Discharge4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121229EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1212029EN
