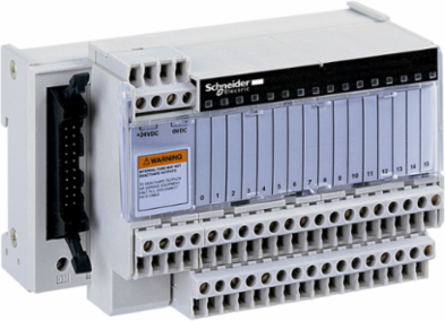

Schneider Electric ABE7H16R20 Passive I/O Sub-Base with 16 Channels, 20 Pins, IP2X Protection
- MPN: ABE7H16R20
- PPN: SCH-ABE7H16R20
CAD
$167.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric ABE7H16R20 Passive I/O Sub-Base is an essential component for enhancing automation and control in various applications. Featuring 16 channels and 20 pins, this sub-base facilitates efficient connectivity and integration within programmable logic controllers (PLCs) and human-machine interfaces (HMIs). Designed with an IP2X protection rating, it offers reliable safety and durability in environments where exposure to elements is a concern, ensuring optimal performance. This passive I/O sub-base is engineered to streamline data acquisition processes, making it a crucial part of any modern industrial control system.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Latvia
Complementary Attributes
- Maximum Current Per Output Common
- 1.8 A
Maximum Supply Current1.8 A
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Connector Type
- SUB-D 15, HE-10, SUB-D 9
- Connections - Terminals
- screw type terminals, 1 x 0.09...1 x 1.5 mm² 28 AWG...16 AWG) flexible with cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm² 26 AWG...12 AWG) solidscrew type terminals, 1 x 0.14...1 x 2.5 mm² 26 AWG...14 AWG) flexible without cable endscrew type terminals, 2 x 0.09...2 x 0.75 mm² 28 AWG...20 AWG) flexible with cable endscrew type terminals, 2 x 0.2...2 x 2.5 mm² 24 AWG...14 AWG) solid
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.6 kg CO2 eq., 0.6436559498423242
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 8 kg CO2 eq., 8.385804802234256
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1212029EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1845
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Current Per Channel
- 0.5 A
- Installation Category
- II IEC 60664-1
- Number Of Horizontal Rows
- 2
- Pin Number
- 20 pins
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Modicon ABE7
- Resistance To Fast Transients
- 2 kV level 3 IEC 61000-4-4
- Resistance To Radiated Fields
- 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Status Led
- 1 LED (Green) power ON
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 1 758 kg CO2 eq.
- Voltage Drop On Power Supply Fuse
- 0.3 V
- Pep Code
- ENVPEP1212029_V4
- Pep Verification Date
- 2026-06-18
- Psr Version
- No PSR
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Latvia, LV
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential In %
- 6
- [Ui] Rated Insulation Voltage
- 2000 V
- Short-circuit Protection
- 2 A internal fuse, 5 x 20 mm, fast blow PLC end)
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Certificate AgencyGL, DNV, CSA, UL, EAC
Carbon Footprint Of The Distribution Phase [A4]0.04464137440324269, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.07916909433663707, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]1 749 kg CO2 eq., 1749.1248641439533
Local Publishable Date2026-01-12
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Fixing Modeby clips (35 mm symmetrical DIN rail)by screws (solid plate with fixing kit)
Number Of Channels16
Number Of Terminal Per Channel2
Polarity Distribution0 V or 24 V
Product Or Component Typepassive discrete I/O sub-base
Resistance To Electrostatic Discharge4 kV contact) level 3 IEC 61000-4-28 kV air) level 3 IEC 61000-4-2
Resistance To Incandescent Wire750 °C IEC 60695-2-11
ReturnabilityNo
Software Versionv6.2.5-6
Supply Circuit TypeDC
Tightening Torque0.6 N.m flat Ø 3.5 mm
Vibration Resistance2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPCR-4-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo connect I/O to channels of operative parts for 10 years, 100% of the time in industrial atmosphere.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh3784.32
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Width Nominal125 mm
[Us] Rated Supply Voltage19...30 V IEC 61131-2
Sub-base TypeI/O sub-base
Package Weight(Lbs)299.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2-5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 1758.2781353647697
- Environmental Disclosure
- ENVPEP1212029_V4
- Ip Degree Of Protection
- IP2X conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1212029_V4
- Pcr Version
- PCR-4-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1212029EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2026-06-18
Psr VersionNo PSR
General Attributes
- Product Or Component Type
- passive discrete I/O sub-base
Range Of ProductModicon ABE7
ETIM
- ETIM 8
- EC002585
ETIM 9EC002585
Output Attributes
- Maximum Current Per Output Common
- 1.8 A
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
