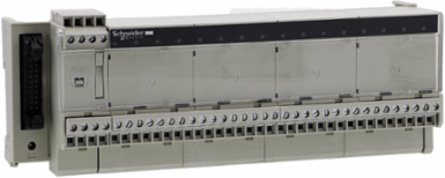

Schneider Electric ABE7R16S212 Electromechanical Relay Sub-base, 16 Channels, 10 mm Relay, IP2X
- MPN: ABE7R16S212
- PPN: SCH-ABE7R16S212
CAD
$574.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a sub-base with fixed relays for 16 channels, an integral NO contact and common, with 2 terminals per channel. Its control circuit voltage is 24VDC. It provides a digital output control function. It is furnished with removable screw terminal for electrical connection, with a 20-way HE10 connector, and electromechanical relays. The tightening torque of wiring is 0.6N.m with flat diameter 3.5mm screwdriver. It is a relay output sub-base with IP20 degree of protection. It weighs 0.400kg. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. This product is certified by DNV, CSA, UL, GL and EAC. It is suitable for use with Modicon M221 Book, TSX Micro and Modicon Premium controllers, Modicon TM3 and X80 I/O expansion modules. It is delivered in 1 package (PCE type). Its fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Latvia
Complementary Attributes
- Maximum Switching Voltage
- 250 V AC 50/60 Hz IEC 60947-5-1, 30 V DC IEC 60947-5-1
- Maximum Power Dissipation Per Channel In W
- 0.36 W PLC end)
Maximum Current Per Output Common10 A
Minimum Switching Current10 mA >= 5 V
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Contact Bounce Time
- <= 5 ms 1 NO, <= 5 ms 1 NO<= 5 ms 1 NO, <= 5 ms 1 NO
- Fixing Mode
- by clips (35 mm symmetrical DIN rail), by screws (solid plate with fixing kit)
- Operating Time
- <= 10 ms coil energisation and NO closing, <= 10 ms coil energisation and NO closing, <= 5 ms coil de-energisation and NO opening, <= 5 ms coil de-energisation and NO opening<= 10 ms coil energisation and NO closing, <= 10 ms coil energisation and NO closing, <= 5 ms coil de-energisation and NO opening, <= 5 ms coil de-energisation and NO opening
- Certificate Agency
- UL, CSA, GL, DNV, EAC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 1 kg CO2 eq., 1.2528687719338887
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 16 kg CO2 eq., 16.322870885954305
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1212029EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1845
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Contacts Type And Composition
- 1 NO preactuator end
- Dielectric Strength
- 2000 V IEC 60947-1
- Installation Category
- II IEC 60664-1
- Mechanical Durability
- 20000000 cycles
- Number Of Terminal Per Channel
- 2
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- TC
- Resistance To Fast Transients
- 2 kV level 3 IEC 61000-4-4
- Resistance To Radiated Fields
- 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Sustainable Packaging
- No
- Threshold Tripping Voltage
- 19.7 V 40 °C
- Total Lifecycle Carbon Footprint
- 990 kg CO2 eq.
- Pep Code
- ENVPEP1212029_V4
- Pep Verification Date
- 2026-06-18
- Psr Version
- No PSR
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Latvia, LV
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential, In %
- 6
- [Ui] Rated Insulation Voltage
- 2000 V
- [Us] Rated Supply Voltage
- 24 V DC PLC end
- Drop-out Voltage
- 2.4 V 20 °C PLC end)
- Package Weight(Lbs)
- 582.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electrical Durability500000 cycles 600 mA 24 V DC-13 10 ms preactuator end), 500000 cycles 1500 mA 230 V AC-12 preactuator end), 500000 cycles 1500 mA 24 V DC-12 preactuator end), 500000 cycles 900 mA 230 V AC-15 preactuator end)
Operating Rate In Hz10 Hz no load, 0.5 Hz at Ie
Switching Frequency<= 0.5 Hz, <= 10 Hz, <= 0.5 Hz, <= 10 Hz
Carbon Footprint Of The Distribution Phase [A4]0.08689391271801754, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.15410171539773507, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]972 kg CO2 eq., 971.7360356355297
Local Publishable Date2026-01-12
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Current Per Channel5 A preactuator end
Electrical Reliability1e-008
Max Immunity To Microbreaks5 ms
Number Of Channels16
Polarity Distributioncommon per group of 8 channels on both poles
Product Or Component Typeelectromechanical output relay sub-base
Range Of ProductModicon ABE7
Resistance To Incandescent Wire750 °C 30 s IEC 60695-2-11
ReturnabilityNo
Software Versionv6.2.5-6
Terminal Block Typeremovable
Tightening Torque0.6 N.m flat Ø 3.5 mm
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPCR-4-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo connect I/O to channels of operative parts for 10 years, 100% of the time in industrial atmosphere.
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh2102.4
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Width Nominal206 mm
[Uimp] Rated Impulse Withstand Voltage2.5 kV IEC 60947-1
Drop-out Current1 mA 20 °C
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2-5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 989.5527709215336
- Environmental Disclosure
- ENVPEP1212029_V4
- Ip Degree Of Protection
- IP2X conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1212029_V4
- Pcr Version
- PCR-4-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1212029EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2026-06-18
Psr VersionNo PSR
General Attributes
- Product Or Component Type
- electromechanical output relay sub-base
Range Of ProductModicon ABE7
ETIM
- ETIM 8
- EC001284
ETIM 9EC001284
Output Attributes
- Maximum Current Per Output Common
- 10 A
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
