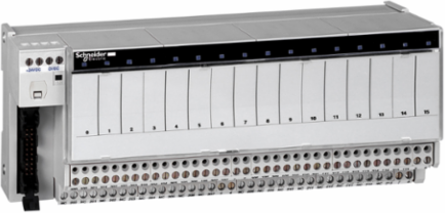

Schneider Electric ABE7R16T212 Sub-base with Plug-in Electromechanical Relay, 16 Channels, 10 mm Relay
- MPN: ABE7R16T212
- PPN: SCH-ABE7R16T212
CAD
$601.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This sub-base from Schneider Electric is engineered to enhance automation and control applications, featuring 16 channels designed to accommodate various DC supply connections. With an IP2X protection rating, it ensures safety and security for internal components, making it suitable for environments where exposure to foreign objects is a concern. Ideal for use in relay socket or base configurations, this module streamlines the integration of I/O devices, promoting efficient data acquisition and reliable operation in complex control systems.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Latvia
Complementary Attributes
- Maximum Supply Current
- 1 A
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Certificate Agency
- CSA, UL, DNV, GL, EAC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.10555669465917251, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.18719916286288432, 0.2 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 972 kg CO2 eq., 971.7360356355297
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- No
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Fixing Mode
- by clips (35 mm symmetrical DIN rail)by screws (solid plate with fixing kit)
- Number Of Channels
- 16
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Modicon ABE7
- Resistance To Fast Transients
- 2 kV level 3 IEC 61000-4-4
- Resistance To Radiated Fields
- 10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Status Led
- 1 LED per channel (Green) channel status1 LED (Green) power ON
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 993 kg CO2 eq.
- Voltage Drop On Power Supply Fuse
- 0.3 V
- Pep Code
- ENVPEP1212029_V4
- Pep Verification Date
- 2026-06-18
- Psr Version
- No PSR
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Latvia, LV
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential In %
- 6
- [Us] Rated Supply Voltage
- 19...30 V IEC 61131-2
- Sub-base Type
- output sub-base
- Package Weight(Lbs)
- 707.0 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
[Ui] Rated Insulation Voltage2000 V terminals/mounting rails, 300 V coil circuit/contact circuits IEC 60947-1
Carbon Footprint Of The End-of-life Phase [C1 To C4]2 kg CO2 eq., 1.5219557074866998
Carbon Footprint Of The Manufacturing Phase [A1 To A3]20 kg CO2 eq., 19.828642124346555
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1212029EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1845
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Contacts Type And Composition1 NO
Installation CategoryII IEC 60664-1
Polarity Distributionpolarity distribution contact common per 2 groups of 8 channels
Product Or Component Typesub-base with plug-in electromechanical relay
Resistance To Electrostatic Discharge4 kV contact) level 3 IEC 61000-4-28 kV air) level 3 IEC 61000-4-2
Resistance To Incandescent Wire750 °C IEC 60695-2-11
ReturnabilityNo
Software Versionv6.2.5-6
Supply Circuit TypeDC
Tightening Torque0.6 N.m flat Ø 3.5 mm
Vibration Resistance2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPCR-4-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo connect I/O to channels of operative parts for 10 years, 100% of the time in industrial atmosphere.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh2102.4
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
[Uimp] Rated Impulse Withstand Voltage2.5 kV
Short-circuit Protection1 A internal fuse, 5 x 20 mm, fast blow PLC end)
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8537109150
Environment Attributes Main
- Ambient Air Temperature For Operation
- -5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2-5-60 °C IEC 61131-2, -5-60 °C IEC 61131-2
- Product Compatibility
- ABR7S21, ABR7S21
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1212029EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2026-06-18
- Psr Version
- No PSR
Ambient Air Temperature For Storage-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2-40-80 °C IEC 61131-2, -40-80 °C IEC 61131-2
Take BackNo
China Rohs RegulationX
Carbon Footprint993.379389324885
Environmental DisclosureENVPEP1212029_V4
Ip Degree Of ProtectionIP2X conforming to IEC 60529
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1212029_V4
Pcr VersionPCR-4-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- sub-base with plug-in electromechanical relay
Range Of ProductModicon ABE7
ETIM
- ETIM 8
- EC001284
ETIM 9EC001284
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
