Schneider Electric NSYTBP29248T Thalassa TBP Industrial Enclosure, 291x241x88 mm, IP66, IK08
Schneider Electric NSYTBP29248T Thalassa TBP Industrial Enclosure, 291x241x88 mm, IP66, IK08
- MPN: NSYTBP29248T
- PPN: SCH-NSYTBP29248T
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$182.02/ EA
Description

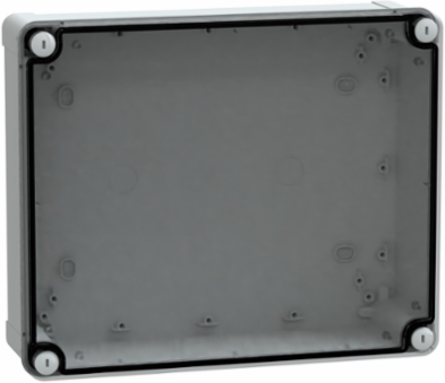

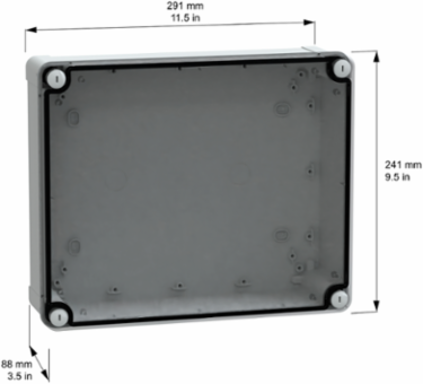

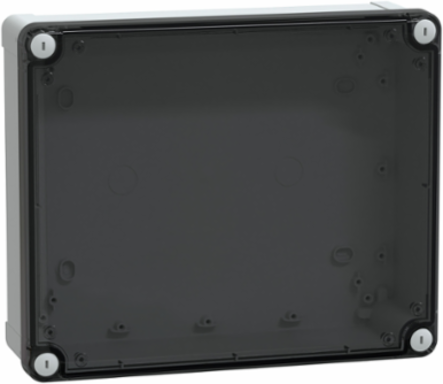

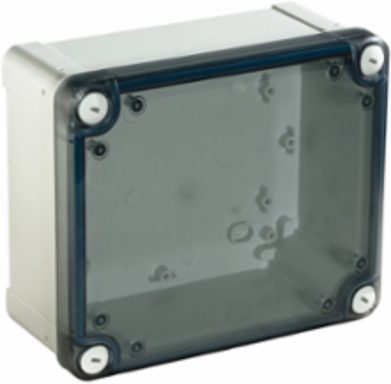

Thalassa TBP industrial PC box with transparent PC cover H20. Int is 275 x 225 x 80 mm. Ext is 291 x 241 x 88 mm. Wall mounted enclosure. Low transparent cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
Specifications
Environment
- Ik Degree Of Protection
- IK08 conforming to IEC 62262
- Ip Degree Of Protection
- IP66 NEMA 4.4X
- Fire Resistance
- 960 °C
Ambient Air Temperature For Operation-25-80 °C
Ambient Air Temperature For Storage-15-60 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2012016EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI2012016EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Product Certifications
- TÜV || UL
- Net Weight
- 0.86 kg
- Material
- polycarbonate
- Colour
- grey RAL 7035) || transparent
StandardsUL 508 A || IEC 62208
Electrical Insulation Classclass II

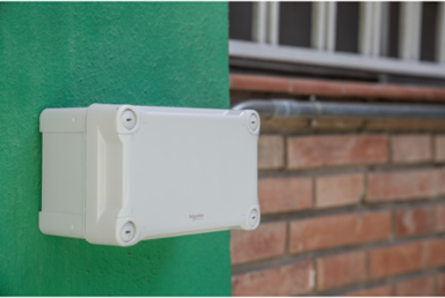

Mounting Locationoutdoor (with canopy or shelter and anticondensation valve)
Specifications
- Removable Parts
- cover by captive screws
- Product Or Component Type
- industrial box
- Internal Height
- 275 mm
- Product Name
- Thalassa TBP
- Device Composition
- 1 body || 1 cover || 4 cover screw
- Range
- Thalassa
- Cover Fixing
- plastic screws
- Width
- 241 mm
- Device Application
- multi-purpose
Height291 mm
Internal Width225 mm
Internal Depth80 mm
Lock Typecaptive screw flat outside sealed area
Type Of Front Coverlow transparent cover
Body Typeone piece moulded
Enclosure Mountingwall mounted
Depth88 mm
