Schmersal 103012160 Passive Distribution Module for Terminal Boxes, 24 VDC Operating Voltage, IP00
- MPN: 103012160
- PPN: SCM-103012160
CAD
$221.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

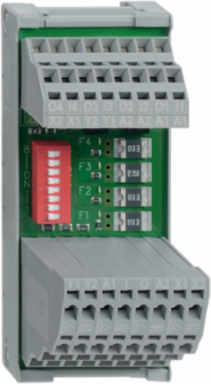

Passive Distribution Module for Terminal Boxes, 24 VDC Operating Voltage, IP00
Features
- For parallel IO devices
- Passive distribution module for series-wiring
- Cage clamps
- For up to 4 safety switchgears
- Fuse protected device ports
- For installation in terminal boxes
- Protection class IP00
Documentation & Downloads
Specifications
Key Specifications
- Width
- 45 mm
- Depth
- 67.7 mm
Height105.4 mm
Electrical data
- Operating voltage
- 24 VDC -15 % / +10 % (stabilised PELV power supply)
Rated operating voltage24 VDC
Mechanical data - Dimensions
- Width
- 45 mm
- Depth
- 67.7 mm
Height105.4 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 32 VDC
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution2
General data - Features
- Integral system diagnostics, status
- Yes
Number of LEDs5
General data
- Standards
- EN IEC 62061 | EN IEC 60947-5-1 | EN IEC 60947-5-3 | EN IEC 60947-5-5 | EN IEC 60204-1 | EN IEC 60947-1
- Gross weight
- 165 g
Enclosure materialPlastic, Polyamide PA 66 GV
Ambient conditions
- Degree of protection
- IP00
- Storage and transport temperature, minimum
- -40 °C
- Relative humidity, minimum
- 5 %
- Note (Relative humidity)
- non-condensing
- Restistance to shock
- 30 g / 11 ms
Ambient temperature-25 ... +65 °C
Storage and transport temperature, maximum+85 °C
Relative humidity, maximum95 %
Resistance to vibrations10 … 55 Hz, amplitude 1 mm
Protection classIII
Mechanical data - Connection technique
- Termination
- Cage clamps
- Cable section, maximum
- 1.5 mm²
Cable section, minimum0.25 mm²
Note (Cable section)All indications including the conductor ferrules.
Approvals - Standards
- Certificates
- cULus
