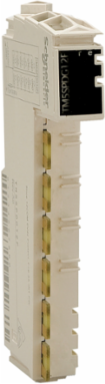

Schneider Electric TM5SPDG6D6F Power distribution module, Modicon TM5, common 6 x 0 V DC, 6 x 24 V DC
- MPN: TM5SPDG6D6F
- PPN: SCH-TM5SPDG6D6F
CAD
$163.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This is a common distribution electronic module with a rated supply voltage of 24V DC. It allows cabling various voltage to power 6 I/O in 0V DC and 6 I/O in 24V DC. This product is part of a flexible and scalable I/O configuration for automation solutions. It has a 6.3A internal fuse. It is an IP20 rated product. The housing colour is white. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with distributed safety I/O on Sercos bus Modicon M258 logic controllers, Modicon LMC058 and Modicon LMC078 motion controllers. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
