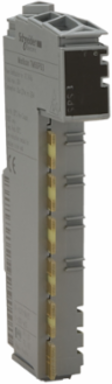

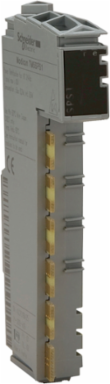

Schneider Electric TM5SPS3 Modicon TM5 Power Distribution Module, 24V DC, 10A Short-Circuit Protection
Schneider Electric TM5SPS3 Modicon TM5 Power Distribution Module, 24V DC, 10A Short-Circuit Protection
- MPN: TM5SPS3
- PPN: SCH-TM5SPS3
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$118.83/ EA
Description
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This is a power distribution module with a rated supply voltage of 24V DC. It offers a maximum power dissipation of 1.91W with 10A external fuse short-circuit protection. This product is part of a flexible and scalable I/O configuration for automation solutions. It has a short-circuit protection with 10A external fuse. It is an IP20 rated product. The housing colour is grey. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with distributed safety I/O on Sercos bus Modicon M258 logic controllers, Modicon LMC058 and Modicon LMC078 motion controllers. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
Specifications
Environment
- Product Certifications
- GOST-R || C-Tick || CSA || cULus
- Standards
- CSA C22.2 No 213 || CSA C22.2 No 142 || IEC 61131-2 || UL 508
- Ambient Air Temperature For Operation
- -10-55 °C without derating horizontal installation) || 55-60 °C with derating factor horizontal installation) || -10-50 °C vertical installation)
- Shock Resistance
- 15 gn 11 ms
- Electromagnetic Compatibility
- EN/IEC 61000-4-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Resistance To Electrostatic Discharge
- 4 kV on contact EN/IEC 61000-4-2 || 8 kV in air EN/IEC 61000-4-2
- Operating Altitude
- 0...2000 m
Resistance To Electromagnetic Fields1 V/m 2...2.7 GHz EN/IEC 61000-4-3 || 10 V/m 80...2000 MHz EN/IEC 61000-4-3
Storage Altitude0-3000 m
Vibration Resistance1 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz DIN rail
Disturbance Radiated/ConductedCISPR 11
Surge Withstand0.5 kV differential mode EN/IEC 61000-4-5 || 1 kV common mode EN/IEC 61000-4-5
Relative Humidity5-95 % without condensation
Resistance To Fast Transients1 kV EN/IEC 61000-4-4 I/O) || 1 kV EN/IEC 61000-4-4 shielded cable) || 2 kV EN/IEC 61000-4-4 power lines)
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1511026EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1511026EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- [Us] Rated Supply Voltage
- 24 V
- Marking
- CE
- Current Consumption
- <= 25 mA 24 V DC
- Colour
- grey
- Range Compatibility
- Modicon LMC078 || Modicon LMC058 || Modicon M258
Network TypeDC
Power Supply Output Current750-750 mA TM5 power bus -10-55 °C || 500-500 mA TM5 power bus 55-60 °C || 10-10 A I/O power segment
Maximum Power Dissipation In W1.91 W
Short-Circuit Protection10 A external fuse
Product Compatibilitylogic controller || motion controller
Specifications
- Range Of Product
- Modicon TM5
- Product Specific Application
- supply 24 V DC I/O modules and bus CANopen || supply 24 V DC I/O modules and bus Sercos III
Product Or Component Typepower distribution module
