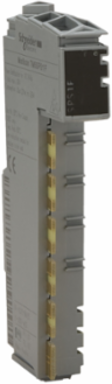

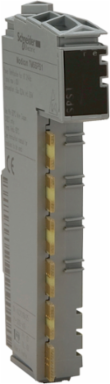

Schneider Electric TM5SPS1F Modicon TM5 Power Distribution Module, 24V DC, 6.3A, IP20
- MPN: TM5SPS1F
- PPN: SCH-TM5SPS1F
CAD
$126.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This is a power distribution module with a rated supply voltage of 24V DC. It offers a maximum power dissipation of 0.8W and supplies a 10A current for I/O power segment. This product is part of a flexible and scalable I/O configuration for automation solutions. It has a 6.3A internal fuse. It is an IP20 rated product. The housing colour is grey. It weighs 0.03kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with Modicon M258 and Modicon LMC058 controllers. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Austria, Brazil, France
Depth75 mm
Physical Attributes
- Housing Color
- grey
Complementary Attributes
- Maximum Power Dissipation In W
- 1.02 W
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Vibration Resistance
- 1 gn 8.4-150 Hz) on DIN rail, 3.5 mm 5-8.4 Hz) on DIN rail
- Carbon Footprint Of The Distribution Phase [A4]
- 0.012955110030789654, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.025553353556937924
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 41 kg CO2 eq., 41.145147237782886
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1511026EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1901
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Bearing Track Assembly Possible
- true
- Front Installation Possible
- false
- Network Type
- DC
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Radio Standard Bluetooth
- false
- Radio Standard Gsm
- false
- Range Of Product
- Modicon TM5
- Shock Resistance
- 15 gn 11 ms
- Supporting Protocol For Asi
- false
- Supporting Protocol For Devicenet
- false
- Supporting Protocol For Ethercat
- false
- Supporting Protocol For Interbus
- false
- Supporting Protocol For Lon
- false
- Supporting Protocol For Other Bus Systems
- false
- Supporting Protocol For Profinet Cba
- false
- Supporting Protocol For Profisafe
- false
- Supporting Protocol For Sercos
- false
- Sustainable Packaging
- No
- Typical Current Consumption
- 34 mA 24 V DC
- Certified For Ul Hazardous Location Class I
- false
- Certified For Ul Hazardous Location Class Iii
- false
- Certified For Ul Hazardous Location Division 2
- false
- Housing Color
- grey
- Potential Separation Present
- false
- With Power Supply Module
- false
- Database Version
- 2024-01
- Pcr Version
- PCR-4-ed4-FR-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To manage digital or analog I/O signal 100% of the time for 10 years with dissipation power of 1.51W.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 89.352
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Width Nominal
- 12.5 mm
- Short-circuit Protection
- 6.3 A internal fuse
- Appendant Operation Agent (Ex Ib)
- false
- Certified For Ul Hazardous Location Group B (Hydrogen)
- false
- Certified For Ul Hazardous Location Group D (Propane))
- false
- Certified For Ul Hazardous Location Group F (Carbonaceous Dust)
- false
- Performance Level According To En Iso 13849-1
- none
- Radio Standard Wi-fi 802.11
- false
- Supporting Protocol For Data-highway
- false
- Supporting Protocol For Interbus-safety
- false
- Wall Mounting/Direct Mounting Possible
- false
- Package Weight(Lbs)
- 37.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Certificate AgencyC-tick, CSA, GOST-R, cULus
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.05902161370165091, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 1.2454859203282898
Local Data StatusPublishable
Return IndicatorN
Device TypePLC System - PLC Component
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Electrical Connectionscrew/spring terminal block
MarkingCE
Optical Interface Presentfalse
Product Or Component Typepower distribution module with internal fuse
Radio Standard Gprsfalse
Radio Standard Umtsfalse
ReturnabilityNo
Software Versionv6.2.5-6
Supporting Protocol For Canfalse
Supporting Protocol For Devicenet Safetyfalse
Supporting Protocol For Foundation Fieldbusfalse
Supporting Protocol For Knxfalse
Supporting Protocol For Modbusfalse
Supporting Protocol For Profibusfalse
Supporting Protocol For Profinet Iofalse
Supporting Protocol For Safetybus Pfalse
Supporting Protocol For Suconetfalse
Total Lifecycle Carbon Footprint42 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Certified For Ul Hazardous Location Class Iifalse
Certified For Ul Hazardous Location Division 1false
Dc Supply Voltage24-24 V
Bus Diagnosis Possiblefalse
System Accessoryfalse
Pep CodeENVPEP1511026EN
Pep Verification Date2025-12-25
Psr VersionPSR-0005-ed3-EN-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Austria, AT
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Turkey, TR
Height Nominal99 mm
[Us] Rated Supply Voltage24 V DC
Appendant Operation Agent (Ex Ia)false
Certified For Ul Hazardous Location Group A (Acetylene)false
Certified For Ul Hazardous Location Group C (Ethylene))false
Certified For Ul Hazardous Location Group E (Metal Dusts)false
Certified For Ul Hazardous Location Group G (Non Conductive Dust)false
Rack-assembly Possiblefalse
Supporting Protocol For As-interface Safety At Workfalse
Supporting Protocol For Ethernet/Ipfalse
Supporting Protocol For Tcp/Ipfalse
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-55 °C without derating horizontal installation), -10-55 °C without derating horizontal installation), -10-55 °C without derating horizontal installation), -10-50 °C vertical installation), -10-50 °C vertical installation)-10-55 °C without derating horizontal installation), -10-55 °C without derating horizontal installation), -10-55 °C without derating horizontal installation), 55-60 °C with derating factor horizontal installation), -10-50 °C vertical installation)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 42.488163235400556
- Circularity Profile
- ENVEOLI1511026EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1511026EN
- Pcr Version
- PCR-4-ed4-FR-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Product Compatibilitymotion controller, logic controller
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Ambient Air Temperature For Storage-25-70 °C-25-70 °C
Environmental DisclosureENVPEP1511026EN
Ip Degree Of ProtectionIP20
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Relative Humidity5-95 % without condensation
Pep Verification Date2025-12-25
Psr VersionPSR-0005-ed3-EN-2023 06 06
General Attributes
- Product Or Component Type
- power distribution module with internal fuse
Range Of ProductModicon TM5
ETIM
- ETIM 8
- EC001600
ETIM 9EC001600
Output Attributes
- Power Supply Output Current
- 6.3-6.3 A I/O power segment
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Current
- 6300 mA I/O power segment
Accessories
