Tripp Lite PDUMH30HV6 5.5kW Single-Phase Local Metered PDU - 16 C13 & 2 C19 Outlets (208/230V), L6-30P Input, 1.8 m Cord, 2U, TAA
- MPN: PDUMH30HV6
- UPC: 037332256584
- PPN: TRP-PDUMH30HV6
CAD
$875.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

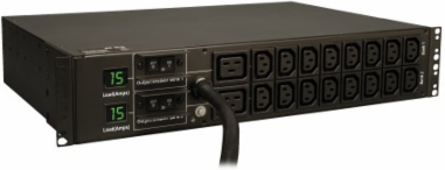

5.5kW Single-Phase Local Metered PDU - 16 C13 & 2 C19 Outlets (208/230V), L6-30P Input, 1.8 m Cord, 2U, TAA

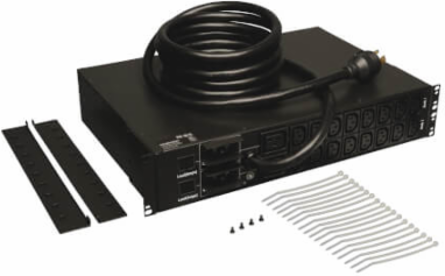

Features
- PDUMH30HV6 5.5kW Single-Phase Local Metered PDU
- (18) Plug-lock insert sleeves
- Rack-mounting hardware
- Owner's manual
Documentation & Downloads
Specifications
Dimensions

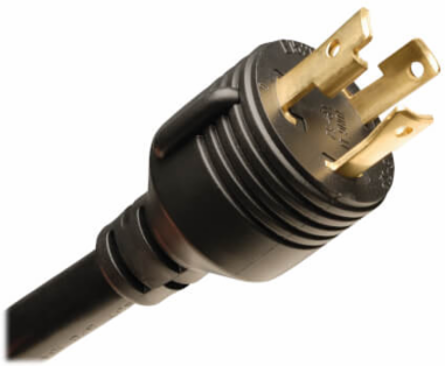

- PDU Plug Type
- NEMA L6-30P
- Output Receptacle Details
- Compatible with Eaton Tripp Lite Power Cords
- Front Panel LCD Display

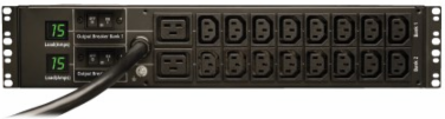

- Set of 2 digital meters continuously report output current for breakered load banks 1 & 2 (Bank 1: upper row of 9 outlets / Bank 2: lower row of 9 outlets)
- Minimum Required Rack Depth
- 16 in
- Unit Dimensions
- 3.500 x 17.500 x 12.500 in
- Grounding
- Grounding lug
Input Cord Length6 ft
Output Receptacles(16) C13; (2) C19
Form Factors Supported2U rackmount; mounting accessories included
PDU Form FactorHorizontal (2U)
Unit Weight13.7 lb
Performance
- PDU Type
- Local Metered
- PDU Input Voltage
- 208/230V
- Maximum Input Amps
- 24A (Agency de-rated to 24A continuous)
- Frequency Compatibility
- 50 / 60 Hz
- Overload Protection
- Two 20A breakers protect 9 outlets each
- Storage Temperature Range
- -22° to 122°F (-30° to 50°C)
- Operating Elevation
- 0-10000 ft. (0-3000 m)
Input PhaseSingle-Phase
Recommended Electrical ServiceSingle-phase 30A 208/230V service
Output Capacity Details5.5kW (230V), 5kW (208V) total capacity / 30A max (Agency de-rated to 24A), 20A max per breakered outlet bank; 16A max per C19 outlet; 12A max per C13 outlet
Output Nominal Voltage208/230V
Operating Temperature Range32° to 104°F (0° to 40°C)
Relative Humidity5% to 95% non-condensing
Material
- Material of Construction
- Metal
Reference
- Product Warranty Period
- 2-year limited warranty
