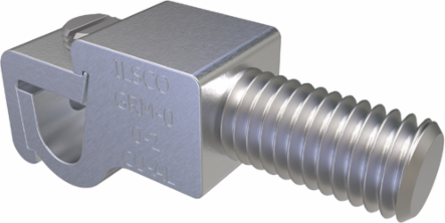

ILSCO GRM-0 Permaground Aluminum Grounding Connector, Dual Rated, Conductor Range 1/0-2, Male, 1/2in Bolt Size, Tin Plated
- MPN: GRM-0
- UPC: 783669309003
- PPN: ILC-GRM-0
- UNSPSC: 39121408
CAD
$91.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
ILSCO Grounding Connector, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size 1/2 in, Copper/Aluminum Primary Conductor 1/0 Str - 2 Str, 1 conductors, 1 ports/wireways, Drive Type Main Slotted, primary color Silver,
Documentation & Downloads
Specifications
Key Specifications
- UPC Code
- 78366930900
- Dual Rated
- TRUE
- Conductor Size CU (Primary, run, main, line)
- 1/0 Str,1 Str,2 Str
- Conductor Size AL (Primary, run, main, line)
- 1/0 Str,1 Str,2 Str
- Drive Type Main
- Slotted
- Number of Wire Binding Screws per Port
- 1
- Wire Binding Screw Size (mm)
- 965.2
- Length (IN)
- 2.57
- Width (IN)
- 0.75
- Height (IN)
- 1.037
- Weight (LB)
- 0.161
- Material
- Aluminum
- Connector Finish
- Tin
- Wire Binding Hardware Finish
- Tin
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- Conductor Type
- Solid,Stranded
- Number of Ports / Wireways
- 1
- Bag Quantity
- 1
UNSPSC Code39121408
Conductor Range CU Stranded (Primary, run, main, line)1/0 Str - 2 Str
Conductor Range AL Stranded (Primary, run, main, line)1/0 Str - 2 Str
Conductor Size Steel Strand8-Mar
Mounting Bolt/Stud Size1/2/2020
Wire Binding Screw Size8-Mar
Wire Binding Torque1/0 - 2 AWG = 50
Length (mm)65.278
Width (mm)19.05
Height (mm)26.3398
Mounting Bolt/Stud Size (mm)304.8
Conductor MaterialCopper,Aluminum
Wire Binding Hardware MaterialBrass
ColorSilver
ConnectionMechanical
Number of Conductors1
Number of Ports Main1
CrossSellDE-OX-8OZ
