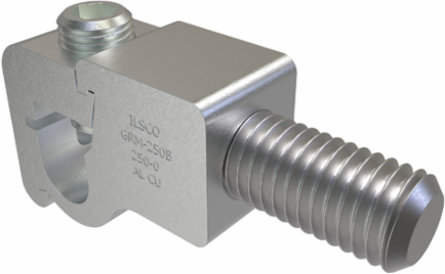

ILSCO GRM-250B Permaground Aluminum Grounding Connector, Dual Rated, Conductor Range 250-1/0, Male, 5/8in Bolt Size, Tin Plated
- MPN: GRM-250B
- UPC: 783669322361
- PPN: ILC-GRM-250B
- UNSPSC: 39121408
CAD
$232.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
ILSCO Grounding Connector, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size 5/8 in, Copper/Aluminum Primary Conductor 250 kcmil - 1/0 Str, 1 conductors, 1 ports/wireways, Drive Type Main 5/16 Internal Hex, primary color Silver,
Documentation & Downloads
Specifications
Key Specifications
- UPC Code
- 78366932236
- Dual Rated
- TRUE
- Conductor Size CU (Primary, run, main, line)
- 250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str
- Conductor Size AL (Primary, run, main, line)
- 250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str
- Drive Size Main
- 16-May
- Mounting Bolt/Stud Size
- 5/8/2020
- Wire Binding Screw Size
- 16-Sep
- Length (IN)
- 3.432
- Width (IN)
- 0.938
- Height (IN)
- 1.652
- Weight (LB)
- 0.383
- Conductor Material
- Copper,Aluminum
- Wire Binding Hardware Material
- Aluminum
- Color
- Silver
- Connection
- Mechanical
- Number of Conductors
- 1
- Number of Ports Main
- 1
- CrossSell
- DE-OX-8OZ
UNSPSC Code39121408
Conductor Range CU Stranded (Primary, run, main, line)250 kcmil - 1/0 Str
Conductor Range AL Stranded (Primary, run, main, line)250 kcmil - 1/0 Str
Conductor Size Steel Strand16-Sep
Drive Type MainInternal Hex
Number of Wire Binding Screws per Port1
Wire Binding Torque275
Length (mm)87.1728
Width (mm)23.8252
Height (mm)41.9608
MaterialAluminum
Connector FinishTin
Wire Binding Hardware FinishTin
Prop65 ComplianceThis product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
Conductor TypeSolid,Stranded
Number of Ports / Wireways1
Bag Quantity1
