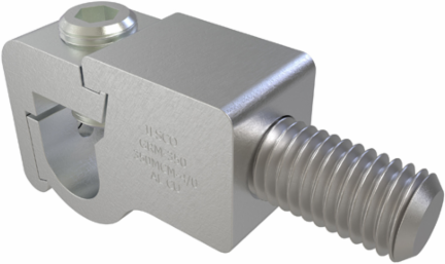

ILSCO GRM-350 Permaground Aluminum Grounding Connector, Dual Rated, Conductor Range 350-4/0, Male, 5/8in Bolt Size, Tin Plated
- MPN: GRM-350
- UPC: 783669311297
- PPN: ILC-GRM-350
- UNSPSC: 39121408
CAD
$132.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
ILSCO Grounding Connector, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size 5/8 in, Copper/Aluminum Primary Conductor 350 kcmil - 4/0 Str, 1 conductors, 1 ports/wireways, Drive Type Main 5/16 Internal Hex, primary color Silver,
Documentation & Downloads
Specifications
Key Specifications
- UPC Code
- 78366931129
- Dual Rated
- TRUE
- Conductor Size CU (Primary, run, main, line)
- 350 kcmil,300 kcmil,250 kcmil,4/0 Str
- Conductor Size AL (Primary, run, main, line)
- 350 kcmil,300 kcmil,250 kcmil,4/0 Str
- Drive Type Main
- Internal Hex
- Number of Wire Binding Screws per Port
- 1
- Wire Binding Torque
- 275
- Length (mm)
- 93.4974
- Width (mm)
- 25.4
- Height (mm)
- 42.9768
- Material
- Aluminum
- Connector Finish
- Tin
- Wire Binding Hardware Finish
- Tin
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- Conductor Type
- Solid,Stranded
- Number of Ports / Wireways
- 1
- Bag Quantity
- 1
UNSPSC Code39121408
Conductor Range CU Stranded (Primary, run, main, line)350 kcmil - 4/0 Str
Conductor Range AL Stranded (Primary, run, main, line)350 kcmil - 4/0 Str
Drive Size Main16-May
Mounting Bolt/Stud Size5/8/2020
Wire Binding Screw Size8-May
Length (IN)3.681
Width (IN)1
Height (IN)1.692
Weight (LB)0.493
Conductor MaterialCopper,Aluminum
Wire Binding Hardware MaterialAluminum
ColorSilver
ConnectionMechanical
Number of Conductors1
Number of Ports Main1
