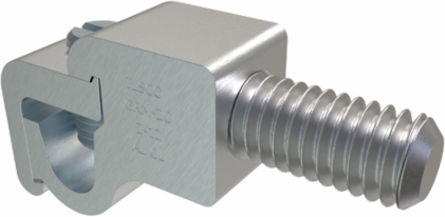

ILSCO GRM-2C Permaground Aluminum Grounding Connector, Dual Rated, Conductor Range 2-12, Male, 3/8in Bolt Size, Tin Plated
- MPN: GRM-2C
- UPC: 783669326666
- PPN: ILC-GRM-2C
- UNSPSC: 39121408
CAD
$58.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
ILSCO Grounding Connector, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size 3/8 in, Copper/Aluminum Primary Conductor 2 Str - 12 Str and 2 Sol - 12 Sol, 1 conductors, 1 ports/wireways, Drive Type Main Slotted, primary color Silver,
Documentation & Downloads
Specifications
Key Specifications
- UPC Code
- 78366932666
- Dual Rated
- TRUE
- Conductor Range CU Solid (Primary, run, main, line)
- 2 Sol - 12 Sol
- Conductor Range AL Stranded (Primary, run, main, line)
- 2 Str - 12 Str
- Conductor Size AL (Primary, run, main, line)
- 2 Sol,3 Sol,4 Sol,5 Sol,6 Sol,7 Sol,8 Sol,10 Sol,12 Sol,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str
- Drive Type Main
- Slotted
- Number of Wire Binding Screws per Port
- 1
- Wire Binding Torque
- 10 - 12 AWG = 35,8 AWG = 40,4 - 6 AWG = 45,2 AWG = 50
- Length (mm)
- 53.9496
- Width (mm)
- 14.3002
- Height (mm)
- 25.3746
- Mounting Bolt/Stud Size (mm)
- 965.2
- Conductor Material
- Copper,Aluminum
- Wire Binding Hardware Material
- Steel
- Color
- Silver
- Connection
- Mechanical
- Number of Conductors
- 1
- Number of Ports Main
- 1
- CrossSell
- DE-OX-8OZ
UNSPSC Code39121408
Conductor Range CU Stranded (Primary, run, main, line)2 Str - 12 Str
Conductor Size CU (Primary, run, main, line)2 Sol,3 Sol,4 Sol,5 Sol,6 Sol,7 Sol,8 Sol,10 Sol,12 Sol,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str
Conductor Range AL Solid (Primary, run, main, line)2 Sol - 12 Sol
Conductor Size Steel Strand16-May
Mounting Bolt/Stud Size3/8/2020
Wire Binding Screw Size16-May
Length (IN)2.124
Width (IN)0.563
Height (IN)0.999
Weight (LB)0.101
MaterialAluminum
Connector FinishTin
Wire Binding Hardware FinishZinc Clear Trivalent Chromate
Prop65 ComplianceThis product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
Conductor TypeSolid,Stranded
Number of Ports / Wireways1
Bag Quantity1
