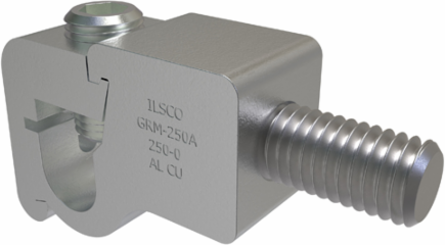

ILSCO GRM-250A Permaground Aluminum Grounding Connector, Dual Rated, Conductor Range 250-1/0, Male, 1/2in Bolt Size, Tin Plated
- MPN: GRM-250A
- UPC: 783669316636
- PPN: ILC-GRM-250A
- UNSPSC: 39121408
CAD
$90.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
ILSCO Grounding Connector, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size 1/2 in, Copper/Aluminum Primary Conductor 250 kcmil - 1/0 Str, 1 conductors, 1 ports/wireways, Drive Type Main 5/16 Internal Hex, primary color Silver,
Documentation & Downloads
Specifications
Key Specifications
- UPC Code
- 78366931663
- Dual Rated
- TRUE
- Conductor Size CU (Primary, run, main, line)
- 250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str
- Conductor Size AL (Primary, run, main, line)
- 250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str
- Drive Size Main
- 16-May
- Mounting Bolt/Stud Size
- 1/2/2020
- Wire Binding Screw Size
- 16-Sep
- Length (IN)
- 3.041
- Width (IN)
- 0.938
- Height (IN)
- 1.652
- Weight (LB)
- 0.327
- Material
- Aluminum
- Connector Finish
- Tin
- Wire Binding Hardware Finish
- Tin
- Prop65 Compliance
- This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- Conductor Type
- Solid,Stranded
- Number of Ports / Wireways
- 1
- Bag Quantity
- 1
UNSPSC Code39121408
Conductor Range CU Stranded (Primary, run, main, line)250 kcmil - 1/0 Str
Conductor Range AL Stranded (Primary, run, main, line)250 kcmil - 1/0 Str
Conductor Size Steel Strand16-Sep
Drive Type MainInternal Hex
Number of Wire Binding Screws per Port1
Wire Binding Torque275
Length (mm)77.2414
Width (mm)23.8252
Height (mm)41.9608
Mounting Bolt/Stud Size (mm)304.8
Conductor MaterialCopper,Aluminum
Wire Binding Hardware MaterialAluminum
ColorSilver
ConnectionMechanical
Number of Conductors1
Number of Ports Main1
CrossSellDE-OX-8OZ
