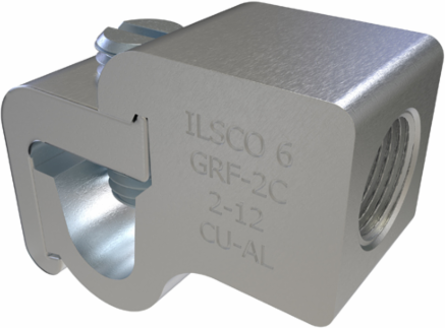

ILSCO GRF-2C Permaground Aluminum Grounding Connector, Dual Rated, Conductor Range 2-12, Female, 3/8in Bolt Size, Tin Plated
- MPN: GRF-2C
- UPC: 783669301427
- PPN: ILC-GRF-2C
- UNSPSC: 39121408
CAD
$29.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
ILSCO Grounding Connector, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size 3/8 in, Copper/Aluminum Primary Conductor 2 Str - 12 Str and 2 Sol - 12 Sol, 1 conductors, 1 ports/wireways, Drive Type Main Slotted, primary color Silver,
Documentation & Downloads
Specifications
Key Specifications
| UPC Code | 78366930142 |
|---|---|
| Dual Rated | TRUE |
| Conductor Range CU Solid (Primary, run, main, line) | 2 Sol - 12 Sol |
| Conductor Range AL Stranded (Primary, run, main, line) | 2 Str - 12 Str |
| Conductor Size AL (Primary, run, main, line) | 2 Sol,3 Sol,4 Sol,5 Sol,6 Sol,7 Sol,8 Sol,10 Sol,12 Sol,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str |
| Drive Type Main | Slotted |
| Number of Wire Binding Screws per Port | 1 |
| Wire Binding Torque | 10 - 12 AWG = 35,8 AWG = 40,4 - 6 AWG = 45,2 AWG = 50 |
| Length (mm) | 32.1056 |
| Width (mm) | 14.3002 |
| Height (mm) | 25.3746 |
| Mounting Bolt/Stud Size (mm) | 965.2 |
| Conductor Material | Copper,Aluminum |
| Wire Binding Hardware Material | Steel |
| Color | Silver |
| Connection | Mechanical |
| Number of Conductors | 1 |
| Number of Ports Main | 1 |
| CrossSell | DE-OX-8OZ |
| UNSPSC Code | 39121408 |
|---|---|
| Conductor Range CU Stranded (Primary, run, main, line) | 2 Str - 12 Str |
| Conductor Size CU (Primary, run, main, line) | 2 Sol,3 Sol,4 Sol,5 Sol,6 Sol,7 Sol,8 Sol,10 Sol,12 Sol,2 Str,3 Str,4 Str,5 Str,6 Str,7 Str,8 Str,10 Str,12 Str |
| Conductor Range AL Solid (Primary, run, main, line) | 2 Sol - 12 Sol |
| Conductor Size Steel Strand | 16-May |
| Mounting Bolt/Stud Size | 3/8/2020 |
| Wire Binding Screw Size | 16-May |
| Length (IN) | 1.264 |
| Width (IN) | 0.563 |
| Height (IN) | 0.999 |
| Weight (LB) | 0.071 |
| Material | Aluminum |
| Connector Finish | Tin |
| Wire Binding Hardware Finish | Zinc Clear Trivalent Chromate |
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
| Conductor Type | Solid,Stranded |
| Number of Ports / Wireways | 1 |
| Bag Quantity | 1 |
