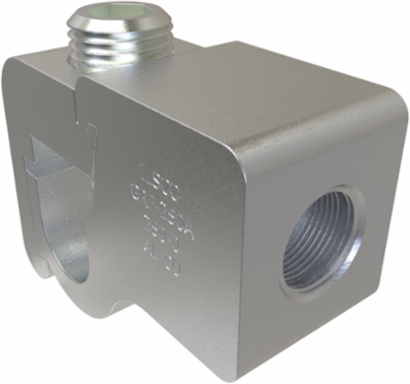

Ilsco GRF-250A Permaground Aluminum Grounding Connector, Dual Rated, Conductor Range 250-1/0, Female, 1/2in Bolt Size, Tin Plated

MPN: GRF-250A
UPC: 783669286083
PPN: ILC-GRF-250A
UNSPSC: 39121408

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$54.64/ EA

Qty:

Loading add to cart quantity...

Description

ILSCO Grounding Connector, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size 1/2 in, Copper/Aluminum Primary Conductor 250 kcmil - 1/0 Str, 1 conductors, 1 ports/wireways, Drive Type Main 5/16 Internal Hex, primary color Silver,

Specifications

UPC Code: 78366928608

Dual Rated: TRUE

Conductor Size CU (Primary, run, main, line): 250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str

Conductor Size AL (Primary, run, main, line): 250 kcmil,4/0 Str,3/0 Str,2/0 Str,1/0 Str

Drive Size Main: 16-May

Mounting Bolt/Stud Size: 1/2/2020

Wire Binding Screw Size: 16-Sep

Length (IN): 2.188

Width (IN): 0.938

Height (IN): 1.652

Weight (LB): 0.261

Material: Aluminum

Connector Finish: Tin

Wire Binding Hardware Finish: Tin

Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation

Conductor Type: Solid,Stranded

Number of Ports / Wireways: 1

Bag Quantity: 1

UNSPSC Code39121408

Conductor Range CU Stranded (Primary, run, main, line)250 kcmil - 1/0 Str

Conductor Range AL Stranded (Primary, run, main, line)250 kcmil - 1/0 Str

Conductor Size Steel Strand16-Sep

Drive Type MainInternal Hex

Number of Wire Binding Screws per Port1

Wire Binding Torque275

Length (mm)55.5752

Width (mm)23.8252

Height (mm)41.9608

Mounting Bolt/Stud Size (mm)304.8

Conductor MaterialCopper,Aluminum

Wire Binding Hardware MaterialAluminum

ColorSilver

ConnectionMechanical

Number of Conductors1

Number of Ports Main1

CrossSellDE-OX-8OZ
