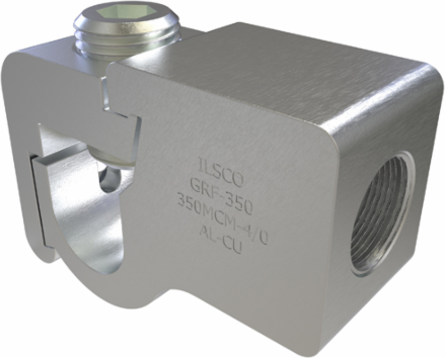

Ilsco GRF-350 Permaground Aluminum Grounding Connector, Dual Rated, Conductor Range 350-4/0, Female, 5/8in Bolt Size, Tin Plated

MPN: GRF-350
UPC: 783669275094
PPN: ILC-GRF-350
UNSPSC: 39121408

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$79.74/ EA

Qty:

Loading add to cart quantity...

Description

ILSCO Grounding Connector, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size 5/8 in, Copper/Aluminum Primary Conductor 350 kcmil - 4/0 Str, 1 conductors, 1 ports/wireways, Drive Type Main 5/16 Internal Hex, primary color Silver,

Specifications

UPC Code: 78366927509

Dual Rated: TRUE

Conductor Size CU (Primary, run, main, line): 350 kcmil,300 kcmil,250 kcmil,4/0 Str

Conductor Size AL (Primary, run, main, line): 350 kcmil,300 kcmil,250 kcmil,4/0 Str

Drive Type Main: Internal Hex

Number of Wire Binding Screws per Port: 1

Wire Binding Torque: 275

Length (mm): 61.5188

Width (mm): 25.4

Height (mm): 42.9514

Material: Aluminum

Connector Finish: Tin

Wire Binding Hardware Finish: Tin

Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation

Conductor Type: Solid,Stranded

Number of Ports / Wireways: 1

Bag Quantity: 1

UNSPSC Code39121408

Conductor Range CU Stranded (Primary, run, main, line)350 kcmil - 4/0 Str

Conductor Range AL Stranded (Primary, run, main, line)350 kcmil - 4/0 Str

Drive Size Main16-May

Mounting Bolt/Stud Size5/8/2020

Wire Binding Screw Size8-May

Length (IN)2.422

Width (IN)1

Height (IN)1.691

Weight (LB)0.298

Conductor MaterialCopper,Aluminum

Wire Binding Hardware MaterialAluminum

ColorSilver

ConnectionMechanical

Number of Conductors1

Number of Ports Main1

CrossSellDE-OX-8OZ
