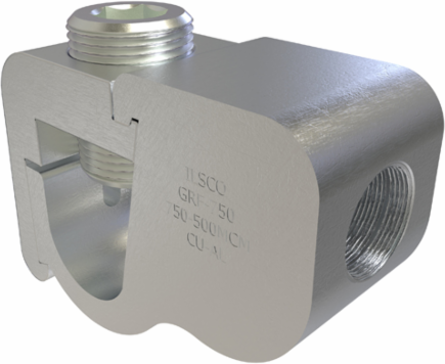

Ilsco GRF-750 Permaground Aluminum Grounding Connector, Dual Rated, Conductor Range 750-500, Female, 3/4in Bolt Size, Tin Plated

MPN: GRF-750
UPC: 783669278323
PPN: ILC-GRF-750
UNSPSC: 39121408

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$165.61/ EA

Qty:

Loading add to cart quantity...

Description

ILSCO Grounding Connector, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size 3/4 in, Copper/Aluminum Primary Conductor 750 kcmil - 500 kcmil, 1 conductors, 1 ports/wireways, Drive Type Main 1/2 Internal Hex, primary color Silver,

Specifications

UPC Code: 78366927832

Dual Rated: TRUE

Conductor Size CU (Primary, run, main, line): 750 kcmil,700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil

Conductor Size AL (Primary, run, main, line): 750 kcmil,700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil

Drive Type Main: Internal Hex

Number of Wire Binding Screws per Port: 1

Wire Binding Torque: 500

Length (mm): 80.5688

Width (mm): 33.3502

Height (mm): 56.769

Material: Aluminum

Connector Finish: Tin

Wire Binding Hardware Finish: Tin

Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation

Conductor Type: Solid,Stranded

Number of Ports / Wireways: 1

Bag Quantity: 1

UNSPSC Code39121408

Conductor Range CU Stranded (Primary, run, main, line)750 kcmil - 500 kcmil

Conductor Range AL Stranded (Primary, run, main, line)750 kcmil - 500 kcmil

Drive Size Main2-Jan

Mounting Bolt/Stud Size3/4/2020

Wire Binding Screw Size15/16

Length (IN)3.172

Width (IN)1.313

Height (IN)2.235

Weight (LB)0.671

Conductor MaterialCopper,Aluminum

Wire Binding Hardware MaterialAluminum

ColorSilver

ConnectionMechanical

Number of Conductors1

Number of Ports Main1

CrossSellDE-OX-8OZ
