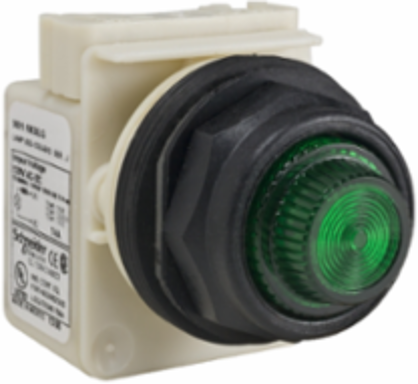

Schneider Electric 9001SKP38LGG31 Harmony Green Pilot Light, 30 mm, LED, IP66, 120V
- MPN: 9001SKP38LGG31
- UPC: 785901041429
- PPN: SCH-9001SKP38LGG31
- UNSPSC: 39121534
CAD
$198.11
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Harmony 9001SK, green pilot light with integral LED and plastic fresnel is supplied with 110V AC/DC. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Features
- Improved security thanks to finger-safe contact blocks and light modules
- Robustness to withstand the harshest environments
- Easy, secure mounting system
- Automatic self-grounding operators without additional wiring
- A large plastic set of accessories to customize your product
- Single screw Contact Block Fastening
- Wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product
- Suitable for installation in harsh environment or outdoor applications due to IP66 protection rating
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
Physical Attributes
| Cad Overall Depth | 42 mm |
|---|---|
| Cad Overall Width | 54 mm |
| Cad Overall Height | 70 mm |
|---|---|
| Size | 30 mm |
Complementary Attributes
| Us Rated Supply Voltage | 120 V120 V AC |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Bulb Base | BA 9s |
| Lens Type | fresnelfresnel plastic |
| Light Source | LEDGreen LED |
| Operating Mode | normal |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protective Treatment | TC |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Light Source Color | green |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Publishable Date | 2026-08-10 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2503027EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Bezel Material | plastic |
| Lens Material | polycarbonate |
| Light Block Supply | direct 120 V |
| Mounting Diameter | 30 mm |
| Operating Position | any position |
| Product Or Component Type | pilot light |
| Range Of Product | Harmony 9001SK |
| Shape Of Signaling Unit Head | round |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Cap/Operator Or Lens Colour | green |
| Customs Code | 8531809026 |
Environment Attributes Main
| Ip Degree Of Protection | IP66, IP65/IP66 |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Circularity Profile | ENVEOLI2503027EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2503027EN |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2503027EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | pilot light |
|---|
| Range Of Product | Harmony 9001SK |
|---|
ETIM
| ETIM 8 | EC000272 |
|---|---|
| ETIM 10 | EC000272 |
| ETIM 9 | EC000272 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | complete product |
|---|
