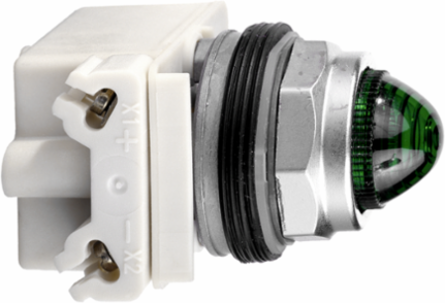

Schneider Electric 9001KP38LGG6 Harmony 9001K Green Pilot Light, 30 mm, LED, 120V, IP66
- MPN: 9001KP38LGG6
- UPC: 785901849520
- PPN: SCH-9001KP38LGG6
CAD
$235.37
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony 9001K, green pilot light with integral LED and glass dome is supplied with 110V AC/DC. It has a chromium-plated metal bezel. This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico, United States |
|---|
Physical Attributes
| Cad Overall Depth | 42 mm |
|---|---|
| Cad Overall Width | 54 mm |
| Light Source Color | green |
| Cad Overall Height | 70 mm |
|---|---|
| Size | 30 mm |
Important Information Attributes
| Certificate Agency | NEMA, UL 508 |
|---|---|
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2503027EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Bezel Material | metal |
| Compatibility Code | 9001K |
| Lens Material | glass |
| Light Block Supply | direct 120 V AC/DC |
| Mounting Diameter | 30 mm |
| Overvoltage Category | class II conforming to IEC 61140 |
| Product Or Component Type | pilot light |
| Range Of Product | Harmony 9001K |
| Shape Of Screw Head | cross slotted |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Tightening Torque | 0.8-0.8 N.m IEC 60947-1 |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pep Code | ENVPEP2503027EN |
| [Ui] Rated Insulation Voltage | 250 V 2)IEC 60947-1 |
| [Us] Rated Supply Voltage | 120 V120 V AC/DC |
| Connections - Terminals | screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8531809051 |
| Local Data Status | Publishable |
|---|---|
| Return Indicator | N |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Product Kit Identifier | N |
| Bulb Base | BA 9s |
| Device Short Name | 9001K |
| Lens Type | domeddomed glass |
| Light Source | LEDGreen LED |
| Operating Position | any position |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Protective Treatment | TC |
| Returnability | No |
| Shape Of Signaling Unit Head | round |
| Sustainable Packaging | Yes |
| Vibration Resistance | 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Light Source Color | green |
| [Ith] Conventional Free Air Thermal Current | 10 A |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV IEC 60947-1 |
| Cap/Operator Or Lens Colour | green |
| Short-circuit Protection | 10 A cartridge fuse IEC 60947-5-1 |
| Package Weight(Lbs) | 226.796 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Nema Degree Of Protection | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6 |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2503027EN |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2503027EN |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2503027EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | pilot light |
|---|
| Range Of Product | Harmony 9001K |
|---|
ETIM
| ETIM 8 | EC000272 |
|---|
| ETIM 9 | EC000272 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | complete product |
|---|
