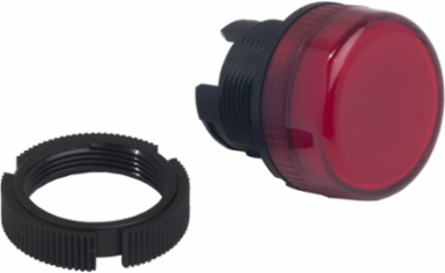

Schneider Electric ZA2BV04 Harmony XAC Red Pilot Light Head, 22mm, IP65, Class II Protection
- MPN: ZA2BV04
- PPN: SCH-ZA2BV04
CAD
$8.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Harmony ZA2BV04 is a red pilot light. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony
- Product Or Component Type
- head for pilot light
Product Specific Applicationfor incandescent bulb
Cap/Operator Or Lens Colourred
Complementary
- Mechanical Durability
- 1000000 cycles
- Net Weight
- 0.015 kg
Compatibility CodeZA2B
Environment
- Ik Degree Of Protection
- IK08 conforming to EN 50102
- Ambient Air Temperature For Storage
- -40-70 °C
- Standards
- CSA C22.2 No 14 || EN/IEC 60947-5-1
- Shock Resistance
- 100 gn IEC 60068-2-27
- Protective Treatment
- TH
Ambient Air Temperature For Operation-25-55 °C
Overvoltage Categoryclass II IEC 61140
Electrical Shock Protection Classclass II IEC 61140
Vibration Resistance15 gn 10-500 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP65 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI1710010EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
