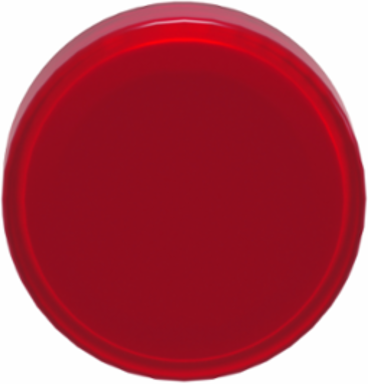

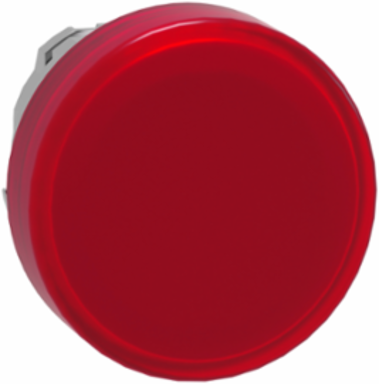

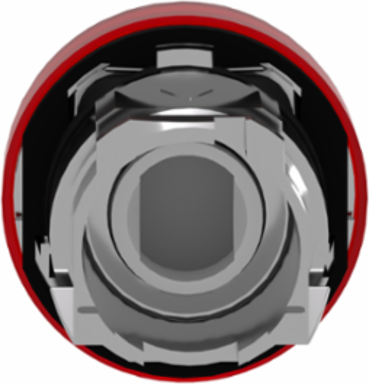

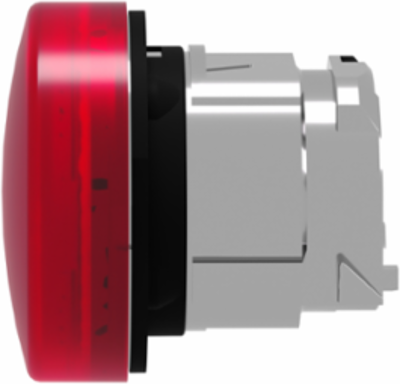

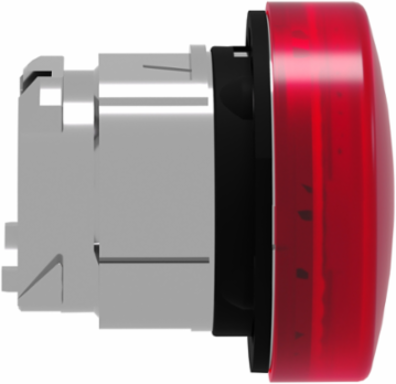

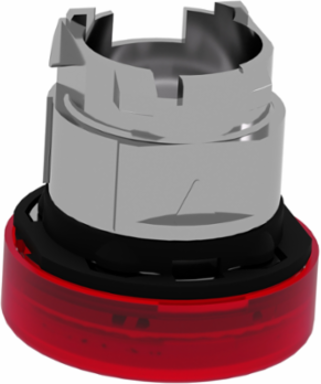

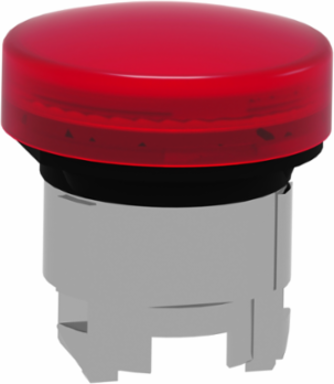

Schneider Electric ZB4BV043 Harmony XB4 Red LED Pilot Light Head, 22mm, IP66, Metal Bezel
- MPN: ZB4BV043
- PPN: SCH-ZB4BV043
CAD
$9.43
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XB4, plain lens head for pilot light with universal LED is red. This head for universal LED pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
Features
- The ZB4BV043 is a 22mm "Pilot Light" operator head from the Schneider Electric Harmony XB4 metal range. It is designed to provide a bright, red visual indication of a machine's status such as "Stop," "Power On," or "Fault" within industrial control panels and automation systems.
- Featuring a Red Plain Lens, this operator is designed to diffuse light evenly across its surface. When paired with a compatible LED or incandescent bulb, it provides high-visibility signaling from a wide viewing angle, ensuring operators can identify critical machine states even in high-ambient light environments.
- Built with a robust chromium-plated metal bezel, the ZB4BV043 is engineered for maximum mechanical durability. It is rated IP66, IP67, IP69, and IP69K, making it completely dust-tight and resistant to high-pressure, high-temperature washdowns. This makes it ideal for food processing, automotive, and heavy-duty manufacturing.
- This part number is the operator head only. To create a functional pilot light, you must pair it with a metal mounting collar (ZB4BZ009) and a light block (such as the ZBVG4 for 120V LED). Its "snap-fit" design allows for the light block to be easily swapped or upgraded without replacing the entire head.
- The Schneider Electric ZB4BV043 is UL Listed, CSA Certified, and CE marked. It is designed to fit a standard 22.5mm (7/8") hole, ensuring compatibility with most industrial control stations and enclosures worldwide while maintaining the NEMA 4X integrity of your panel.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Physical Attributes
- Cap Operator Or Lens Color
- red

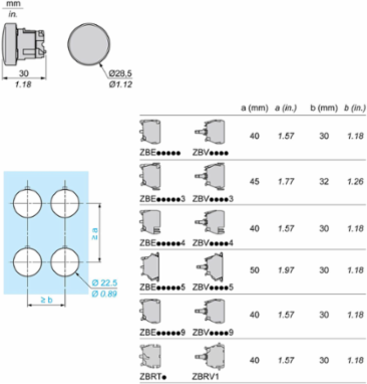

- Cad Overall Height
- 29 mm
Cad Overall Depth30 mm
Cad Overall Width29 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 1, no
- Cap Operator Or Lens Color
- red
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0033998786407766985, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.00481631067961165, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 44 %
- Compatibility Code
- ZB4
- Electrical Composition Code
- P1 front mounting integral LEDP2 front mounting integral LED and transformer
- Group Of Product
- lens fitted integral LED
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Operator Additional Information
- with plain lens
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TH
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity
- 1
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Sustainable Packaging
- Yes
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Pep Code
- ENVPEP2308026EN
- Pep Verification Date
- 2024-02-18
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Cap/Operator Or Lens Colour
- red
- Package Weight(Lbs)
- 27.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Mounting Diameter22 mm, 22 mm
Certificate AgencyIEC 60947-5-1, IEC 60947-5-4, UL 508, IEC 60947-5-5, JIS C8201-5-1, CSA C22.2 No 14, IEC 60947-1, JIS C8201-1
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.06473495145631068
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.2 kg CO2 eq., 0.19509781553398056
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2308026EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Percentage Of Recycled Metal Content20 %
Bezel Materialchromium plated metal
Device Short NameZB4
Gcr BridgeZB4BVCUST01
Head Typestandard
Main Grouppilot light
Overvoltage Categoryclass I conforming to IEC 60536
Product Or Component Typehead for pilot light
Range Of ProductHarmony XB4
ReturnabilityYes
Shape Of Signaling Unit Headround
Software Versionv5.9.4
Total Lifecycle Carbon Footprint0.3 kg CO2 eq.
Operator Add Informationwith plain lens
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionXB4 plain lens modular green pilot light is supplied with 24V AC/DC, uses an integral LED. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination.This pushbutton power consumption is 0.432W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %85
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8531909001
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- Take Back
- No
- Recycled Metal Content At Cr Level
- 20 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.2680489563106796
- Environmental Disclosure
- ENVPEP2308026EN
- Packaging Made With Recycled Cardboard
- Yes
- Product Compatibility
- universal LED
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-02-18
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2308026EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Reach Free Of SvhcYes
Pep CodeENVPEP2308026EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- head for pilot light
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC000223
ETIM 9EC000223
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic element
