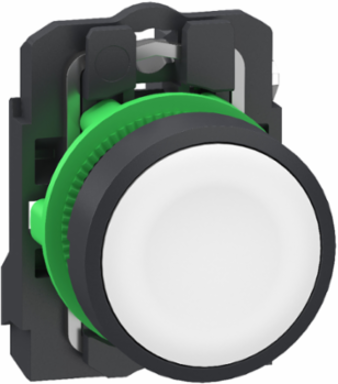

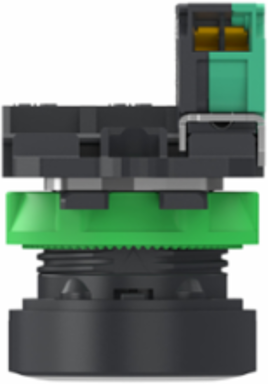

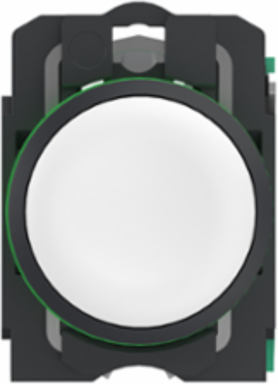

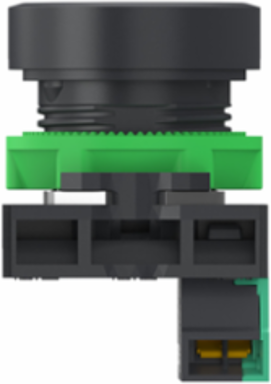

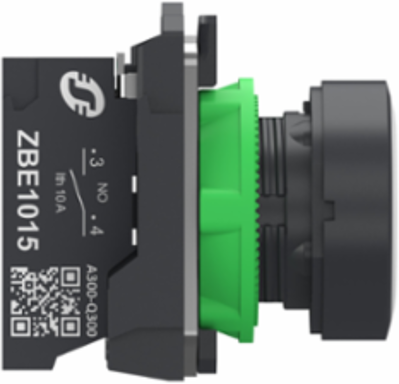

Schneider Electric XB5AA115 Push button, Harmony XB5, grey plastic, flush, white, 22mm, spring return, unmarked, 1 NO, compact push in terminals
- MPN: XB5AA115
- PPN: SCH-XB5AA115
CAD
$45.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony XB5 modular white push button operates with a spring return. This push button provides an ergonomic interface for controlling your machines and processes. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with push-in terminal connections. It is distinguishable thanks to clear color, minimizing errors during initial wiring and later maintenance operations. The XB5AA115 pushbutton is equipped with 1 normally open (NO) contact, featuring a slow break operation. This product is made from plastic, it weighs 41g. It is impact-resistant, dust-resistant, water and vibration-resistant thanks to its IP66, IP67, IP69, and IP69K ratings, making it ideal for operation in harsh environments. Legend holders, marked or unmarked legends for this pushbutton can be purchased separately. Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.
Features
- Manufactured with a high-resistance, double-insulated plastic bezel, this 22mm control unit is specifically engineered to withstand aggressive industrial solvents, oils, and frequent chemical cleaning. It provides non-conductive, corrosion-proof structural integrity, making it the ideal choice for food processing, pharmaceutical, and marine environments where metallic operators would quickly corrode or pit.
- Designed with a smooth, spring-return mechanical action, this white flush push button instantly resets after every press, allowing operators to execute sequential control commands rapidly. The tactile feedback guarantees positive actuation, preventing worker fatigue and ensuring responsive machine operation in fast-paced production environments.
- Built with a double-insulated, high-impact plastic bezel and fixing ring, this 22mm pilot device is immune to rust, corrosion, and galvanic decay. This makes it an ideal, cost-effective choice for chemical processing facilities, water treatment plants, and marine environments where metallic buttons would quickly degrade and seize up.
- Equipped with advanced, compact push-in termination blocks, this electrical assembly allows for fast, tool-free connection of solid or stranded wires with ferrules. This secure, vibration-proof terminal architecture eliminates the tedious turning and torque-checking required by traditional screw clamps, dramatically reducing labor costs and eliminating field failures from loose connections.
- Featuring a highly reliable 1 NO (Normally Open) slow-break contact block made of premium silver-nickel (Ag/Ni) alloy, this switch delivers consistent, low-resistance electrical connectivity. It safely handles general-purpose control circuits up to 6A at 120V AC while maintaining excellent contact cleaning action, preventing signaling dropouts when interfacing with digital PLC inputs and industrial automation networks.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Mexico, United States

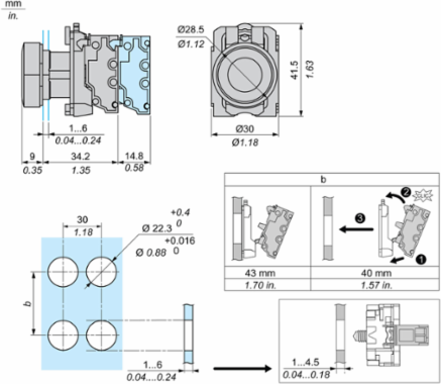

Depth43.2 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- no, 1
- Shock Resistance
- 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Certificate Agency
- EAC, IECEE CB Scheme, CCC, UL, CSA
- Connections - Terminals
- push-in, <= 2 x 1.5 mm² with wire end ferrule IEC 60947-1, push-in, >= 1 x 0.34 mm² without wire end ferrule IEC 60947-1
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0150153669, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.011337663
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0.0431122817
- Local Publishable Date
- 2026-01-12
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Compatibility Code
- XB5
- Contacts Material
- silver alloy (Ag/Ni)
- Contacts Usage
- standard contacts
- Fixing Collar Material
- plastic
- Head Type
- standard
- Mounting Diameter
- 22.5 mm
- Operator Profile
- white flush, unmarked
- Positive Opening
- without
- Product Or Component Type
- push-button
- Range Of Product
- Harmony XB5
- Returnability
- Yes
- Shape Of Signaling Unit Head
- round
- Sustainable Packaging
- No
- Type Of Operator
- spring return
- Pep Code
- ENVPEP2303008EN
- Pep Verification Date
- 2024-03-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Height Nominal
- 42 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60947-1
- Short-circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1
- Package Weight(Lbs)
- 33 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Operating Travel2.05 mm NO changing electrical state), 4.3 mm total travel)
Vibration Resistance5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
[Ie] Rated Operational Current6 A 120 V, AC-15, A300 IEC 60947-5-1, 3 A 240 V, AC-15, A300 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q300 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q300 IEC 60947-5-1

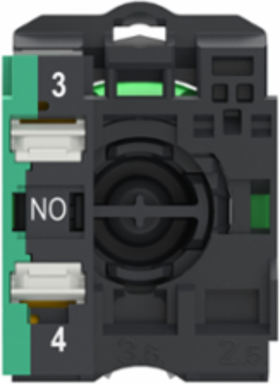

Terminals Description Iso N°1(13-14)NO, (13-14)NO
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.0777254411, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.3 kg CO2 eq., 0.3187123498
Local Data StatusPublishable
Pre Comm Date2024-05-23
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2303008EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Bezel Materialplastic
Contact Operationslow-break
Contacts Type And Composition1 NO
Device Short NameXB5
Gcr BridgeXB5AACUST01
Mechanical Durability10000000 cycles
Operating Force2.45 N NO changing electrical state
Overvoltage Categoryclass II conforming to IEC 60536
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTH
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Software Versionv5.9.4
Total Lifecycle Carbon Footprint0.5 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionXB5 Modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations.A push button switch s primary purpose is to turn something on or off in industrial applications and the product complies with IEC 60947-1 standards.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Width Nominal30 mm
[Ui] Rated Insulation Voltage300 V 3)IEC 60947-1
Cap/Operator Or Lens Colourwhite
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- Take Back
- No
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2303008EN
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2303008EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionNEMA 13, NEMA 4X, UL type 4X/13
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.4659031025
Environmental DisclosureENVPEP2303008EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-03-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- push-button
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC001028
ETIM 9EC001028
Overview Attributes
- Device Presentation
- complete product
