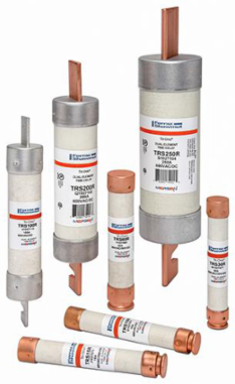

Mersen TRS45RID Fuse Tri-Onic® 600V 45A Time-Delay Class RK5 with SmartSpot Indicator
- MPN: TRS45RID
- UPC: 782001415112
- PPN: FER-TRS45RID
CAD
$52.57
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Tri-Onic TRS-R current-limiting time-delay fuses are engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TRS-R safely handle harmless starting currents and inrush currents associated with today's motors and transformers.
Specifications
Key Specifications
- Rated voltage AC UL
- 600 V
- Frequency (Hz)
- 50/60 Hz
- AC or DC
- AC/DC
- Speed/Characteristic
- Time Delay
- AC Max I.R./Breaking Capacity: I1
- 200 kA
- Indication System Type
- SmartSpot®
- Connection/Terminal Type
- Ferrule
- Length
- 5.5 in
Rated voltage DC UL300 V
Ampere Rating45 A
Fuse ClassClass RK5
MountingClip
Indication SystemYes
Connection/Terminal MaterialCopper
Body/Insulating MaterialPolyTube
Weight0.319 lb
