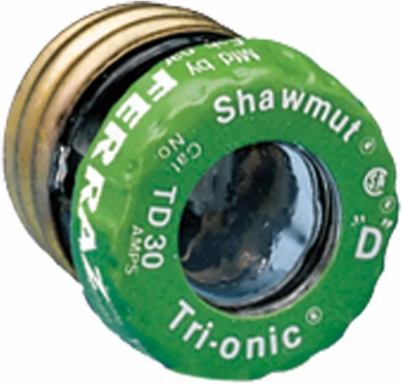

Mersen TD30 Plug Fuse 125V 30A Time Delay with Visual Indicator, 1.29 Inch Length, Brass Connection
- MPN: TD30
- UPC: 068938839963
- PPN: FER-TD30
CAD
$2.83
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Mersen Plug Fuses are for industrial and residential applications. Standard non-time delay fuses are for receptacle and lighting circuits. Standard time delay fuses are for motor loads. For Canadian requirements, a type “P” fuse is used for non-motor loads and type “D” fuses are used for electric heating and cycling loads circuits. Both fuses have low melting-point temperature elements. Low-Temp time delay plug fuses have thermal sensitivity are also for cycling loads and motor circuits. Type “S” plug fuses are time delay and tamper-resistant.
Features
- Engineered with a delayed-action thermal element, this 30-amp plug fuse easily tolerates the normal, temporary current spikes generated during heavy motor startups and cycling machinery. By distinguishing between standard operational inrush currents and hazardous sustained overloads, it eliminates frustrating nuisance trips while keeping your equipment safe and running without interruption.
- Outfitted with a classic brass-threaded Edison base, this fuse screws smoothly into standard medium-base fuse sockets without requiring specialized adapters. This universal, backward-compatible footprint makes it a straightforward drop-in replacement for electricians and property maintenance teams servicing aging electrical infrastructure and branch circuits.
- Featuring a clear glass window on the face of the plug, this fuse offers immediate visual confirmation of its internal status at a glance. If an overcurrent event or short circuit occurs, the window reveals a clearly distorted or blackened element, removing the guesswork and saving troubleshooting time for building managers during service restorations.
- Built to handle a breaking capacity of up to 10,000 Amps at 125V AC, this robust little fuse is designed to withstand severe short-circuit conditions without shattering. The rugged glass body construction prevents dangerous physical containment breaches, containing high-energy faults safely inside the element to protect your surrounding panel and personnel.
- Fully certified to CSA Class 1423-01 standards as a Type "D" low-temperature fuse, this unit is purpose-built to handle continuous electric heating loads and heavy cycling applications. Choosing a fully code-compliant, factory-tested component ensures your older home or commercial property passes local safety inspections and honors standard building insurance policies.
Documentation & Downloads
Specifications
Additional
- Voltage
- 125 V AC
- Interrupting Rating
- 10 kA AC
- Frequency
- 50/60 Hz
- Connection Type
- Screw
- Material
- Brass, Glass
- Indication System
- Visual Indicator
Amperage30 A
Fuse TypeTime Delay Plug
Length1.29 in
MountingScrew
Base TypeEdison
ApprovalsCSA Certified Class 142301, File 15525
