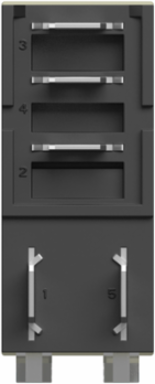

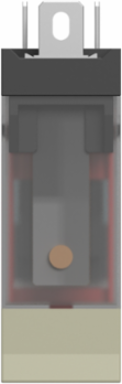

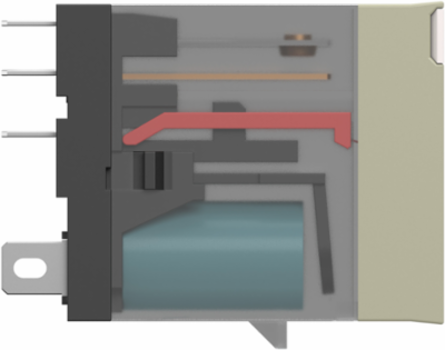

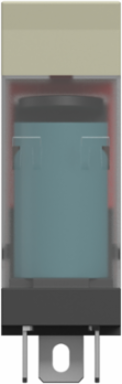

Schneider Electric ABR7S33 Plug-In Electromechanical Relay 12.5 mm 24V DC 1 C/O 10A
- MPN: ABR7S33
- PPN: SCH-ABR7S33
CAD
$13.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This plug-in electromechanical relay is compatible with Modicon ABE7 connection sub-bases. It has 1 change over contact. It is a solid state relay with a control circuit voltage of 24V DC, a conventional free air thermal current of 10A and a maximum power dissipation per pole is 0.6W. It offers electrical durability of 500000 cycles and mechanical durability of 20 million cycles. The width pitch is 12mm. It weighs 0.017kg. It is suitable for all types of industrial applications. This product is suitable for use with Modicon ABE7P08T330E, ABE7R16T332, ABE7P16T334, ABE7P16T318E, ABE7P16T318, ABE7P16T332, ABE7P16T330, ABE7R16T330, ABE7P16T330E and ABE7P08T330 sub-base. Modicon ABE7 means greater simplicity to rationalise wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Latvia, United States
Complementary Attributes
- Maximum Switching Voltage
- 130 V DC IEC 60947-5-1, 264 V AC 50/60 Hz IEC 60947-5-1
- Maximum Power Dissipation Per Pole
- 0.6 W
Control Circuit TypeDC
Minimum Switching Current100 mA >= 5 V
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Electrical Durability
- 500000 cycles 1400 mA 24 V DC-13 10 ms, 500000 cycles 1700 mA 230 V AC-15500000 cycles 3000 mA 230 V AC-12, 500000 cycles 3000 mA 24 V DC-12
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1909
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Associated Fuse Rating
- 1 A, fast blow
- Dielectric Strength
- 2000 V IEC 60947-1
- Max Immunity To Microbreaks
- 5 ms
- Operating Rate In Hz
- 5 Hz no load0.5 Hz at Ie
- Product Or Component Type
- plug-in electromechanical relay
- Range Of Product
- Advantys Telefast ABE7
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- [Ith] Conventional Free Air Thermal Current
- 10 A
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV IEC 60947-1
- Drop-out Voltage
- 3.6 V 20 °C
- Package Weight(Lbs)
- 20 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Contacts Type And Composition1 C/O
Electrical Reliability1e-008
Mechanical Durability20000000 cycles
Product AvailabilityStock - Normally stocked in distribution facility
Quantity Per Setset of 4
ReturnabilityYes
Threshold Tripping Voltage16.8 V 40 °C
Width Pitch Dimension12 mm
[Uc] Control Circuit Voltage24 V
Drop-out Current3.5 mA 20 °C
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code9403200090
Environment Attributes Main
- Product Compatibility
- ABE7P08T330E, ABE7R16T332, ABE7P16T334, ABE7P16T318E, ABE7P16T318, ABE7P16T332, ABE7P16T330, ABE7R16T330, ABE7P16T330E, ABE7P08T330
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- plug-in electromechanical relay
Range Of ProductAdvantys Telefast ABE7
ETIM
- ETIM 8
- EC001652
ETIM 9EC001652
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
