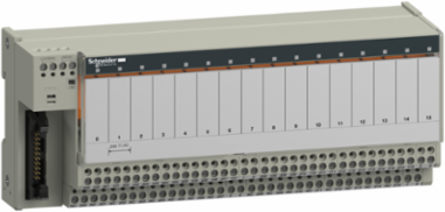

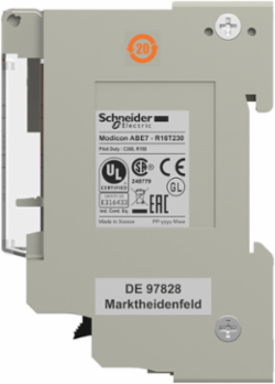

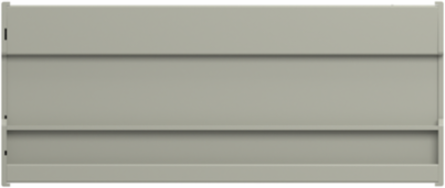

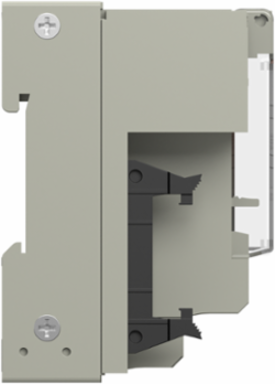

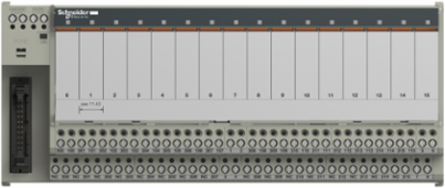

Schneider Electric ABE7R16T230 Sub-base Relay 16 Channels, 19-30V DC, 0.775kg
Schneider Electric ABE7R16T230 Sub-base Relay 16 Channels, 19-30V DC, 0.775kg
- MPN: ABE7R16T230
- PPN: SCH-ABE7R16T230
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$506.32/ EA
Description
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. The sub-base with plug-in electromechanical relay, provides 16 channels. It has change over contact. This product enables rapid connection of I/O modules. It is a relay sub base with a supply voltage of 19V to 30V DC and a maximum supply current of 1A. It is an IP2x rated product. It weighs 0.775kg. It is suitable for all types of industrial applications. This product is certified by GL, CSA, DNV, BV, LROS and UL. This sub-base is suitable for use with ABR7S23 plug-in relay. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Specifications
Environment
- Product Certifications
- UL || GL || DNV || CSA || EAC
- Ambient Air Temperature For Operation
- -5-60 °C IEC 61131-2
- Vibration Resistance
- 2 gn 10-150 Hz)IEC 60068-2-6
- Pollution Degree
- 2 IEC 60664-1
- Ambient Air Temperature For Storage
- -40-80 °C IEC 61131-2
- Resistance To Fast Transients
- 2 kV level 3 IEC 61000-4-4
Resistance To Radiated Fields10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
Shock Resistance15 gn 11 ms IEC 60068-2-27
Ip Degree Of ProtectionIP2X IEC 60529
Resistance To Incandescent Wire750 °C IEC 60695-2-11
Resistance To Electrostatic Discharge4 kV contact) level 3 IEC 61000-4-2 || 8 kV air) level 3 IEC 61000-4-2
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121229EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1212029EN
Complementary
- Short-Circuit Protection
- 1 A internal fuse, 5 x 20 mm, fast blow PLC end)
- Status Led
- 1 LED per channel (green) channel status || 1 LED (green) power ON
- Net Weight
- 0.775 kg
- Contacts Type And Composition
- 1 C/O
- Tightening Torque
- 0.6 N.m flat Ø 3.5 mm
- Supply Circuit Type
- DC
- Product Compatibility
- ABR7S23
[Uimp] Rated Impulse Withstand Voltage2.5 kV
Installation CategoryII IEC 60664-1
Fixing Modeby clips (35 mm symmetrical DIN rail) || by screws (solid plate with fixing kit)
Polarity Distributionvolt-free
Maximum Supply Current1 A
Voltage Drop On Power Supply Fuse0.3 V
[Ui] Rated Insulation Voltage2000 V terminals/mounting rails || 300 V coil circuit/contact circuits IEC 60947-1
Specifications
- Range Of Product
- Modicon ABE7
- Number Of Channels
- 16
- [Us] Rated Supply Voltage
- 19...30 V IEC 61131-2
Product Or Component Typesub-base with plug-in electromechanical relay
Sub-Base Typeoutput sub-base
