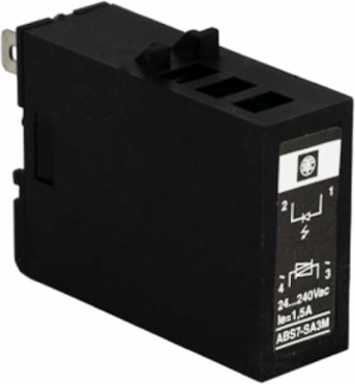

Schneider Electric ABS7SA3M Plug-In Solid State Relay - 12.5 mm, 24-240 V AC, 2 A Output
- MPN: ABS7SA3M
- PPN: SCH-ABS7SA3M
- UNSPSC: 39122333
CAD
$33.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a solid-state plug-in output relays for 24VAC to 240VAC prewired sub-bases. Its response time is less than 10ms from state 0 to 1 and less than 10ms from state 1 to 0. It is used to to control the power along with switching the smaller current values in a control circuit. It is 12.5mm wide. It weighs 0.016kg. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. It is suitable for use with ABE7P16T215, ABE7P16T214, ABE7P16T212 and ABE7P16T210 sub-bases. It is delivered in 1 package (PCE type) containing 4 units. Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.
Features
- Enabling connection/adaptation of control signals of PLC cards equipped with HE10 connectors
- Plug & play solution offering 8, 12, or 16 channel modularity, for a 1, 2, and 3 wire connection
- Offering voltage and power adaptation and common polarities distribution
- Figuring solid state and electromechanical technology, smart sub-bases for analog signal connection
- Ensuring smart compatibility with Modicon PLCs and Modicon I/O modules
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Latvia |
|---|
Important Information Attributes
| Response Time | <= 10 ms from state 0 to 1, <= 10 ms from state 0 to 1, <= 10 ms from state 1 to 0, <= 10 ms from state 1 to 0<= 10 ms from state 0 to 1, <= 10 ms from state 0 to 1, <= 10 ms from state 1 to 0 |
|---|---|
| Local Publishable Date | 2026-01-12 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Product Kit Identifier | N |
| Current State 1 Guaranteed | 6.5 mA DC |
| Product Or Component Type | plug-in solid state relay |
| Range Of Product | Advantys Telefast ABE7 |
| Returnability | No |
| Voltage State 0 Guaranteed | 2.8 V DC |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Local Data Status | Publishable |
|---|---|
| Return Indicator | N |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1846 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Current State 0 Guaranteed | 0.4 mA DC |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Quantity Per Set | set of 4 |
| Relay Type | output relay |
| Sustainable Packaging | No |
| Voltage State 1 Guaranteed | 18.6 V DC |
| Width Pitch Dimension | 10 mm |
| Customs Code | 8536490080 |
Environment Attributes Main
| Product Compatibility | ABE7P16T215, ABE7P16T214, ABE7P16T212, ABE7P16T210 |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP1409004EN |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Environmental Disclosure | ENVPEP1409004EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | plug-in solid state relay |
|---|
| Range Of Product | Advantys Telefast ABE7 |
|---|
ETIM
| ETIM 8 | EC001652 |
|---|---|
| ETIM 10 | EC001652 |
| ETIM 9 | EC001652 |
|---|
Output Attributes
| Discrete Output Current | 2000 mA |
|---|
| Discrete Output Voltage | 24...240 V AC |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Discrete Input Voltage | 24 V DC |
|---|
