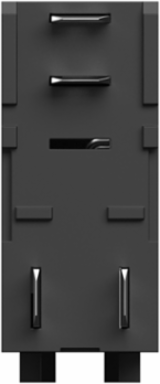

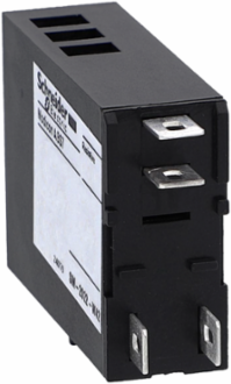

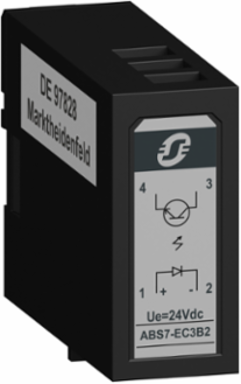

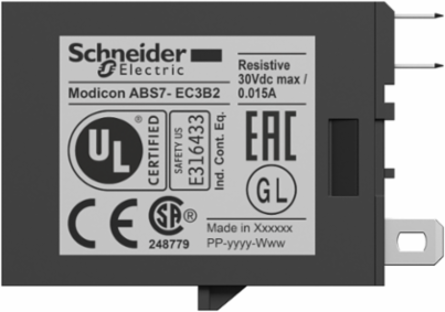

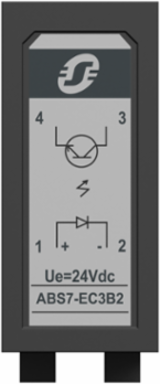

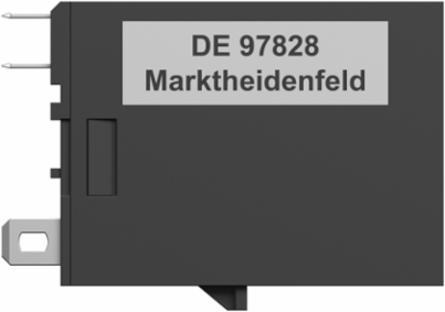

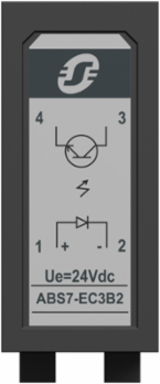

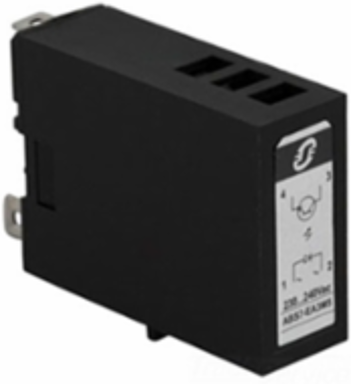

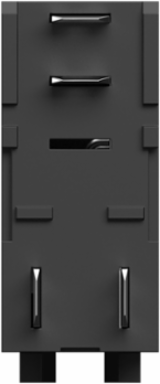

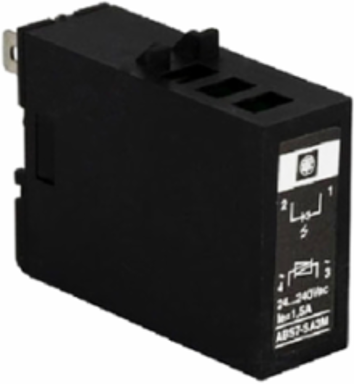

Schneider Electric ABS7EC3B2 Plug-in Solid State Relay 24V DC Input, 12 mm Width Pitch
- MPN: ABS7EC3B2
- PPN: SCH-ABS7EC3B2
CAD
$26.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This plug-in solid state relay is compatible with Modicon ABE7 connection sub-bases. It is a solid state input relay with a discrete input voltage of 24V DC. The response time is ≤0.05ms from state 0 to 1 and ≤0.4ms from state 1 to 0. The width pitch is 12mm. It weighs 0.014kg. It is suitable for all types of industrial applications. This product is suitable for use with Modicon ABE7P16F310, ABE7P16F310E and ABE7P16F312 sub-base. Modicon ABE7 means greater simplicity to rationalise wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Latvia, United States
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Response Time
- <= 0.05 ms from state 0 to 1, <= 0.05 ms from state 0 to 1, <= 0.4 ms from state 1 to 0, <= 0.4 ms from state 1 to 0<= 0.05 ms from state 0 to 1, <= 0.05 ms from state 0 to 1, <= 0.4 ms from state 1 to 0, <= 0.4 ms from state 1 to 0
- Local Publishable Date
- 2026-02-24
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Product Or Component Type
- plug-in solid state relay
- Range Of Product
- Advantys Telefast ABE7
- Returnability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP1409004EN
- Package Weight(Lbs)
- 9.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1846
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Product AvailabilityStock - Normally stocked in distribution facility
Quantity Per Setset of 4
Relay Typeinput relay
Sustainable PackagingNo
Width Pitch Dimension12 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536410050
Environment Attributes Main
- Product Compatibility
- ABE7P16F310, ABE7P16F310E, ABE7P16F312
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1409004EN
Take BackNo
China Rohs RegulationX
Environmental DisclosureENVPEP1409004EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- plug-in solid state relay
Range Of ProductAdvantys Telefast ABE7
ETIM
- ETIM 8
- EC001652
ETIM 9EC001652
Output Attributes
- Discrete Output Voltage
- 5...24 V DC
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Discrete Input Voltage
- 24 V DC, type 2
